Thruster Bow 75 kgf 24V tunnel Dia.185mm

AED 11,374.00 Excl. tax

Stock Status: In stock

EEPN 06.07.0032 | OEM BOW7524D

Download Document

document-text

Description

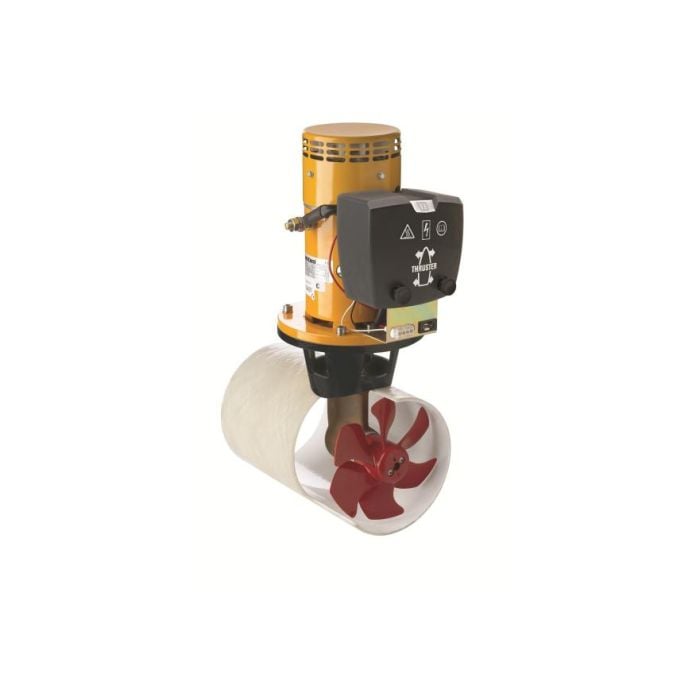

VETUS BOW THRUSTER 75 KGF, 24 VOLT
VETUS bow thruster with 75 kgf thrust force, suitable for boats from 10.5 to 15 metres in length. 24 Volt version.

Advantages of Vetus bow thrusters

  •  A single propeller creates less flow disturbance in the tunnel
  • The Vetus unique propeller blade design minimises cavitation noise
  • Spiral gears minimise transmission noise
  • The use of a flexible coupling between tail piece and motor eliminates vibration
  •  All Vetus systems use a streamlined tail piece for optimum flow
  • A strong synthetic propeller eliminates corrosion and reduces weight
  • Systems are easy to install, supplied with clear installation and operation instructions
  • Vetus systems use a new line of high quality aluminium control panels which are interchangeable with older panels
  • All Vetus manoeuvring systems meet the EMC requirements
cog

General Specification

Thrust, N (kgf) 850 (85) - 24 V
Power kW (hp) 4.4 (6)
Motor, reversible (dc) yes
Tunnel ID (mm) 185
Weight excluding tunnel (kg) 26
24 V dc
Current consumption (A) 280
Operating time - continuously, in minutes
-maximum per hour, in minutes
3
3
Main fuse, “slow blow” (A) 200
Batteries 12 V dc (min. Ah / max. Ah) 2 x 105 / 2 x 143
Battery cables**, total length of positive and negative
cables together (m / mm²)
0-21 / 50
Battery main switch: model BATSW 250 / 24
