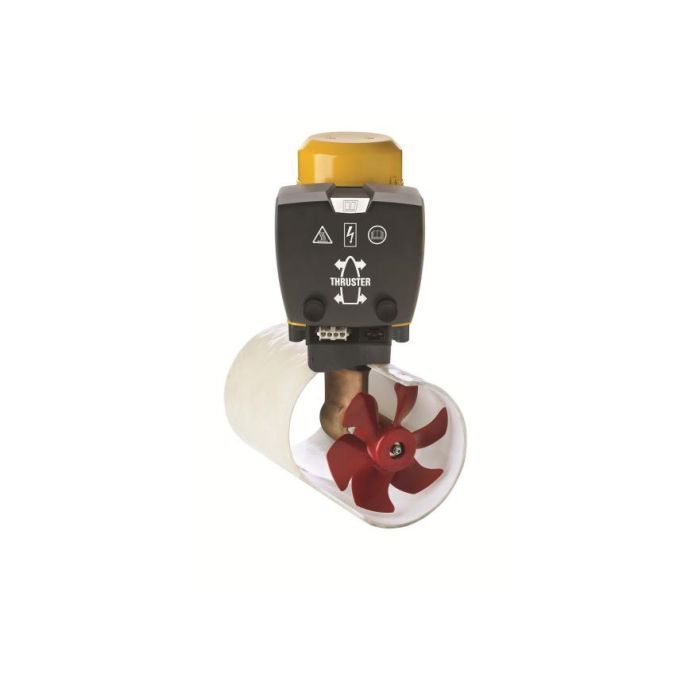

Thruster Bow 25 kgf 12V tunnel Dia.110mm
calcActive())">
Download Document
Description
Description
Advantages of Vetus bow thrusters
- A single propeller creates less flow disturbance in the tunnel
- The Vetus unique propeller blade design minimises cavitation noise
- Spiral gears minimise transmission noise
- The use of a flexible coupling between tail piece and motor eliminates vibration
- All Vetus systems use a streamlined tail piece for optimum flow
- A strong synthetic propeller eliminates corrosion and reduces weight
- Systems are easy to install, supplied with clear installation and operation instructions
- Vetus systems use a new line of high quality aluminium control panels which are interchangeable with older panels
- All Vetus manoeuvring systems meet the EMC requirements
General Specification
| EE Part number |
06.07.0024 |
| Model | BOW2512D |
| Thrust, N (kgf) | 250 (25) |
| Power kW (hp) | 1.5 (2) |
| Motor, reversible (dc) | yes |
| Tunnel ID (mm) | 110 |
| Weight excluding tunnel (kg) | 10 |
