Thruster Bow 55 kgf 24V tunnel Dia.150mm

AED 8,548.00 Excl. tax

Stock Status: Out of stock

EEPN 06.07.0028 | OEM BOW5524D
document-text

Description

Thruster Bow 55 kgf 24V tunnel Dia.150mm Optimal tunnel length is 300-600mm Maximum tunnel length is 900mm both the measurements taken at bottom end of the tunnel.

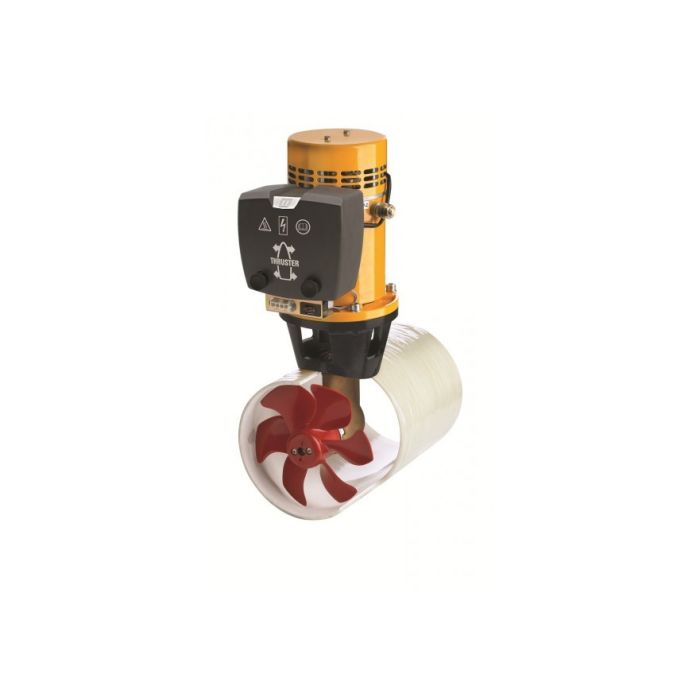

VETUS BOW THRUSTER 55 KGF, 24 VOLT
VETUS bow thruster with 55 kgf thrust force, suitable for boats from 8.5 to 12.5 metres in length. 24 Volt version.

Advantages of Vetus bow thrusters

  •  A single propeller creates less flow disturbance in the tunnel
  • The Vetus unique propeller blade design minimises cavitation noise
  • Spiral gears minimise transmission noise
  • The use of a flexible coupling between tail piece and motor eliminates vibration
  •  All Vetus systems use a streamlined tail piece for optimum flow
  • A strong synthetic propeller eliminates corrosion and reduces weight
  • Systems are easy to install, supplied with clear installation and operation instructions
  • Vetus systems use a new line of high quality aluminium control panels which are interchangeable with older panels
  • All Vetus manoeuvring systems meet the EMC requirements
cog

General Specification

Part number 06.07.0028
Model BOW5524D
Thrust, N (kgf) 550 (55) - 12 V
Power kW (hp) 3 (4)
Motor, reversible (dc) yes
Tunnel ID (mm) 150
Weight excluding tunnel (kg) 20
