Steering kit (reinforced) GF350HD2 for 350HP outboard engine
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
Double cylinder hydraulic steering kit for OB engines up to 350HP
GF350HD2

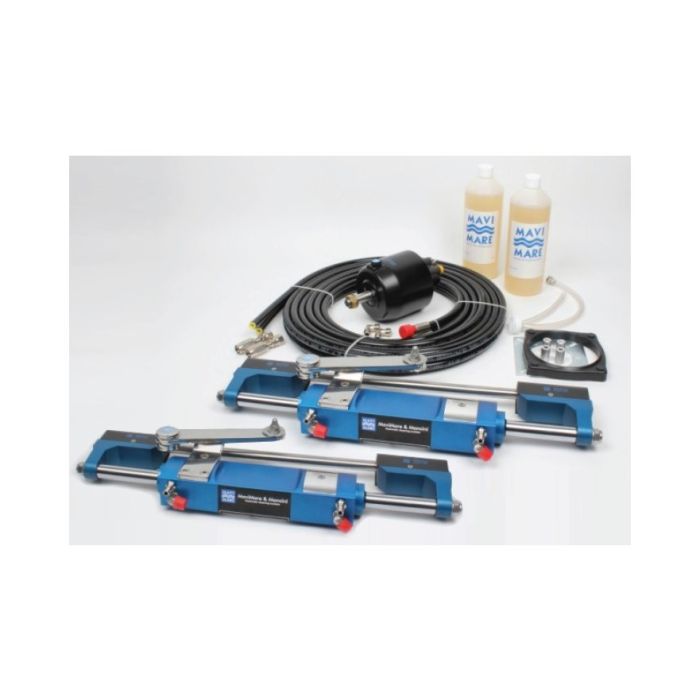

Kit comprises of :
- GM2-MRA03 pump + 2 MC350HD cylinder + brass fittings (1 kit GTN7x10916+ 1 Kit AC38/T916 ) + 2Lt. oil hydraulic + 15 mt SAE100 R7 5/16 hose.
- Turns head to head 8
- Suitable for up to 350 hp or a couple of 350 hp (700 hp) engine with counter rotating propellers.
- All the system an not intended for racing boat.
- Steering system kit supplied with 2 hoses of 7.5m each ,with fittings pressed on one end.
Cylinder technical features :
- Frontal mounting balanced cylinder "bullhorn" type.
NEW: Support rod is composed of two pieces for easy and fast installation, expecially where space is a constraint & in the splash well.
Hoses and fittings kits 06.01.0134 (X.351) or X.352 for double cylinder must be ordered separately
| Parts which make up the complete kit and can be ordered separately. | ||
| EE Part number | OEM part# | Description |
| 06.01.0098 | GM2-MRA04 No | Pump non-tilting |
| 06.01.0136 | MC350HD | Standard Reinforced cylinder frontal mounting bull horn type. |
| 06.01.0160 | MC350HD2 | Cylinder for twin engine installation |
| 06.01.0110 | X.372 | Connection filler tube kit |
| 06.01.0111 | H-AP51 | Hydraulic oil |
| 06.01.0128 | SAE10038 | Kit comprises of 2 HP 5/16” nylon hoses with fittings (2 x 7.5 m hose). |
| Cylinder details: | |
| Volume (cm³) | 152 |
| Stroke (mm) | 198 |
| Ø rod shaft (mm) | 20 |
| Pump details: | |
| Capacity (cc) | 39 |
| No. of pistons | 7 |
| max pressure (bar) | 70 |
| Weight (kg) | 3.7 |
General Specification
| For 2 engines & 2 cylinders application use the following components (order separately). | ||
| Part number | OEM Part# | Description |
| 06.01.0141 | 358.07 | Tie bar SS 316 |
| 06.01.0134 | X.351 | Hose kit |
| For 3 engines & 2 cylinders application use the following components (order separately). | ||
| Part number | OEM Part# | Description |
| 06.01.0137 | 358.08 | Tie bar SS 316 |
| 06.01.0132 | 358.08R | Tie bar reverse SS 316 |
| 06.01.0133 | X.376 | Plate SS 316 for center engine |
| 06.01.0134 | X.351 | Hose kit |
