Steering kit GF300BHD2 evolution for up to 300HP outboard engine
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
Double "Evolution" cylinder hydraulic steering kit for OB engines up to 300 Hp
GF300BHD2

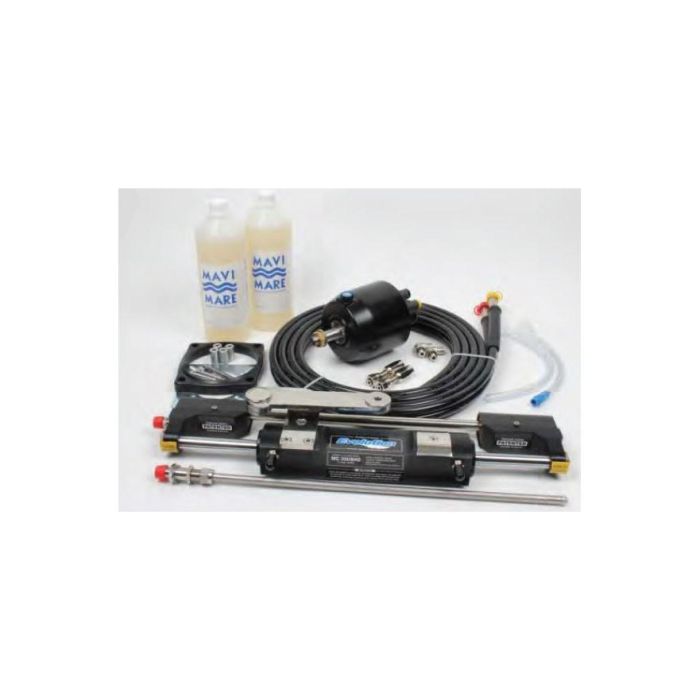

Kit comprises of :
- Pump (GM2-MRA04 No tilt) + 2 cylinder (MC3 00A) + brass fittings + 2 ltr. hydraulic oil + (2 x 7.5m) 15 mtr hose.
- Turns head to head 8
- Suitable for up to 300 hp or a couple of 300 hp (600 hp) engine with counter rotating propellers.
- All the system an not intended for racing boat.
- Steering system kit supplied with 2 hoses of 7.5m each ,with fittings pressed on one end.
Cylinder technical features :
- Frontal mounting balanced cylinder "bullhorn" type.
| Parts which make up the complete kit and can be ordered separately. | ||
| EE Part number | OEM part# | Description |
| 06.01.0098 | GM2-MRA04 No Tilt | Pump non tilt |
| 06.01.0127 | MC3 00A | Frontal mounting / balanced cylinder |
| 06.01.0110 | X.372 | Connection filler tube kit |
| 06.01.0111 | H-AP51 | Hydraulic oil |
| 06.01.0128 | SAE10038 | Kit comprises of 2 HP 5/16” nylon hoses with fittings (2 x 7.5 m hose). |
| Cylinder details: | |
| Volume (cm³) | 130 |
| Stroke (mm) | 198 |
| Ø rod shaft (mm) | 18 |
| Pump details: | |
| Capacity (cc) | 39 |
| No. of pistons | 7 |
| max pressure (bar) | 70 |
| Weight (kg) | 3.5 |
General Specification
| For 2 engines & 2 cylinders application use the following components (order separately). | ||
| Part number | OEM Part# | Description |
| 06.01.0131 | 358.04 | Tie bar SS 316 |
| 06.01.0134 | X.351 | Hose kit |
| For 3 engines & 2 cylinders application use the following components (order separately). | ||
| Part number | OEM Part# | Description |
| 06.01.0123 | 358.05 | Tie bar x 1 pc |
| 06.01.0165 | 358.05R | Reverse tie bar x 1 pc |
| 06.01.0133 | X.376 | Center engine plate SS 316 |
| 06.01.0134 | X.351 | Hose kit |
| For 3 engines & 3 cylinders application use the following components (order separately). | ||
| Part number | OEM Part# | Description |
| 06.01.0131 | 358.04 | Tie bar (Order 2 pcs) |
| 06.01.0134 | X.351 | Hose kit (Order 2 pcs) |
| For Honda 115/130 Hp & Mercury 115 Hp engines order kits separately | ||
| Part number | OEM Part# | Description |
| 06.01.0124 | X.340 | Kit for the Honda engines 115/130Hp |
| 06.01.0125 | X.356 | Kit for the Mercury engines 115Hp |
