Steering kit for Inboard engines on 15-20ft boat

Mavi Mare
AED 3,501.00 Excl. tax

Stock Status: Out of stock

EEPN 06.01.0157 | OEM GE30

Download Document

Brochures
document-text

Description

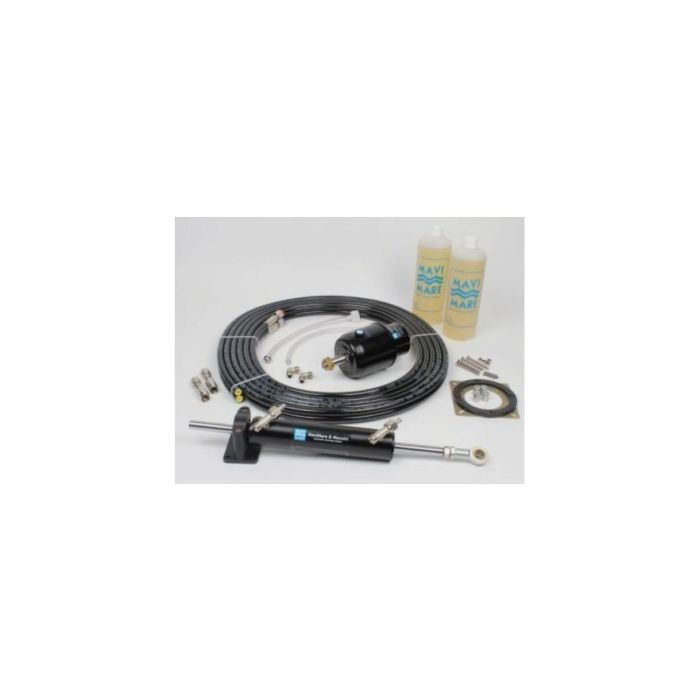

Hydraulic steering kit for inboard engines for boats from 15 to 20 ft
GE30

Kit comprises of:
- GM0-MRA pump + CE30 cylinder + chrome plated brass fittings (1 kit GTN7x10916+ 1 Kit AC10/T916 )+ 12 mt SAE100 R7 1/4 hose (2x6m ) + 1 lt of hydraulic oil.
- Turns head to head 3.6
- Suitable for boats 15-20ft

Parts which make up the complete kit and can be ordered separately.
EE Part number OEM part# Description
06.01.0115 GM0-MRA Pump
06.01.0167 CE30 Chrome plated, brass body cylinder
06.01.0110 X.372 Connection filler tube kit
06.01.0111 H-AP51 Hydraulic oil
06.01.0112 SAE100R7 Kit comprises of 2 HP 1/4” nylon hoses with fittings (2 x 6 m hose).



Cylinder details:
Volume (cm³) 57
Stroke (mm) 150
Ø rod shaft (mm) 16
Torque 32kgm@350°(70 bar)



Pump details:
Capacity (cc) 17
No. of pistons 7
max pressure (bar) 70
Weight (kg) 2.8
cog

General Specification

Cylinder details:
Volume (cm³) 57
Stroke (mm) 150
Ø rod shaft (mm) 16
Torque 32kgm@350°(70 bar)
Pump details:
Capacity (cm³) 17
No. of pistons 7
Max pressure (bar) 70
Weight (kg) 2.8
