SCR-16 Underwater Light - Bronze - Surface Mount - Great White - 7000 Lumens
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description

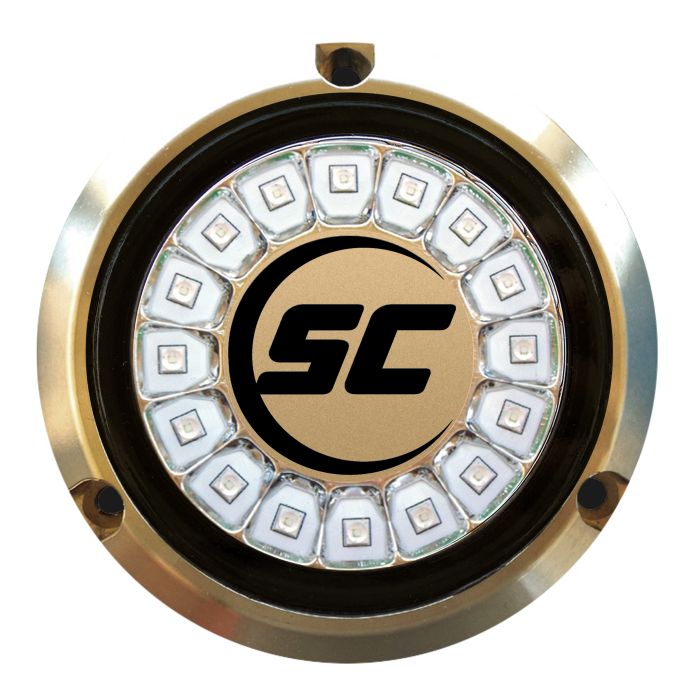

Shadow-Caster LED Lighting SCR-16-GW-BZ-10 Underwater Light – Bronze – Surface Mount – Great White – 7000 Lumens
The Shadow-Caster SCR-16 is a compact 16 LED underwater marine light delivering up to 60 watts of high-intensity illumination. Designed within a 4″ bronze housing, it is built for reliable under-waterline surface mounting across a wide range of vessels.
Available in single and dual-colour configurations, the SCR-16 offers adjustable brightness and flexible control options, making it suitable for both simple installations and more advanced lighting systems.
Its sealed gel-filled construction, tempered glass lens, and integrated protection features ensure dependable performance in demanding marine environments.
Key Features
-
Up to 7,000 lumens output with a wide 120° beam angle
-
Compact 4″ bronze housing for underwater installation
-
Gel-filled, fully sealed design to prevent condensation and water ingress
-
Tempered glass lens resistant to scratches and harsh chemicals
-
Reverse polarity and surge protection for extended lifespan
-
Thermal protection for safe operation even out of water
-
Compatible with multiple control options, including Shadow-NET®
-
IP68 rated and backed by a 3-year warranty
General Specification
| Part Number | 09.03.0607 |
| Product Code | SCR-16-GW-BZ-10 |
| Colour Type | Single Colour |
| Colour | Great White |
| Housing Type | Bronze Surface Mount |
| Lumens (Max) | 7000 |
| Beam Angle | 120° |
| Power Draw | 60W |
| Input Voltage | 10-30V DC |
| OD | 4" (102 mm) |
| Warranty | 3 years |
| IP Rating | IP68 |
| Operating Current Draw | 7 amps @ 12 volts; 2.5 amps @ 24 volts |
