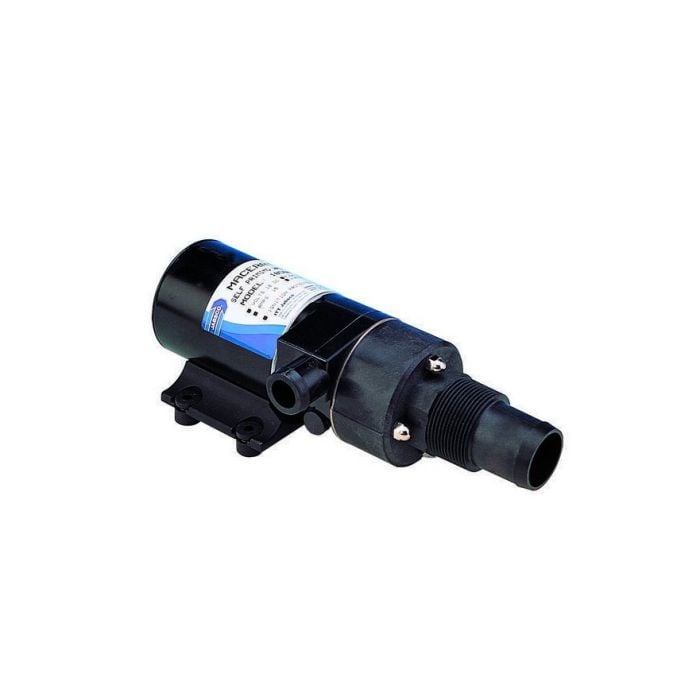

Pump waste (RunDry macerator) 24V (18590 series)

AED 977.00 Excl. tax

Stock Status: In stock

EEPN 04.14.0026 | OEM 18590-2094

Download Document

document-text

Description

WASTE EVACUATION

The Jabsco 18590 series DC macerator pump unit is the ideal solution for emptying marine holding tanks when not in a discharge restricted area. Self-priming to 5ft this pump will empty a typical 30 gallon (115 Liter) holding tank in less than 3 minutes. Duty cycle of the pump is 15 minutes continuous which means a 180 gallon (680 liter) can be emptied in a single operation

It is recommended that holding tanks be flushed with several gallons of water after each pump out. This will reduce the possibility of a continued buildup of sediment in the tank which could cause a potential blockage.

FISH BOX AND LIVEWELL TANK EVACUATION

The Jabsco Macerator Pump is the ideal pump for the emptying of fish box and livewell receptacles. Very often the livewell tank will be above the waterline of the boat, when this is the case gravity can be used to empty the livewell tank. If not installed in this format then it is beneficial to use the Jabsco macerator pump for evacuation due to its self-priming capabilities and also it's grinding properties.

Fish boxes are typically mounted into the floor of the vessel and are very often below the waterline or only partially above the waterline. Again the Jabsco Macerator pump has the characteristics that lend themselves to this application. The bait residue particles of ice, fish scales and anything else that could potentially be found in the Fish-Box will be easily passed by the Jabsco Macerator Pump, and the self-priming capabilities are perfect for fish box installations common to many of today's sports fishing boats.

cog

General Specification

18590-2094 Macerator pump 24V dc

  • Connections: - for 38mm (1½”) bore inlet hose, 25mm (1”) bore discharge hose
  • Dimensions: - 290mm long, 120mm wide, 95mm high
  • Fuse Size: - 15(amp)
  • Output: - up to 43 litres/minute (9 gallons/minute) at 3m total head. Maximum recommended total head 6m
  • Compact toilet waste macerator pump
  • 15 minute rated, for use with waste holding tanks up to 900 litres (200 gallons) capacity
  • Grinds raw toilet waste to a uniform slurry for easy transfer and discharge
  • Self-priming up to 0.6m vertical lift
  • Fully sealed motor with Dry-Run protection device
  • Heavy duty 4 blade chopper
  • Packaged Dimensions: L:30.00 x H:9.00 x W:13.00cm
  • Actual Weight: 2.2 Kg  (Approx. 2.7 Kg packed)
