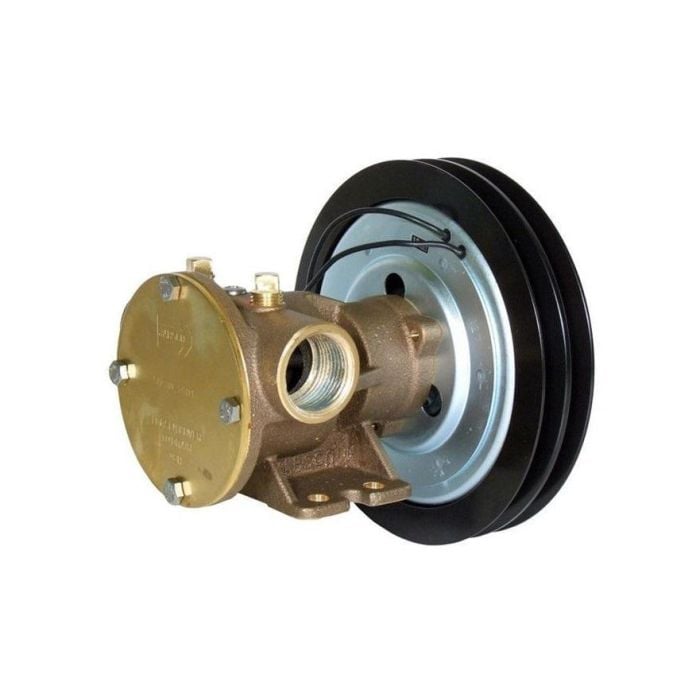

Pump clutch 2A pulley 12V 21 Gpm BSP port Bronze body for bilge & deckwash application

Jabsco
AED 5,745.00 Excl. tax

Stock Status: In stock

EEPN 04.16.0170 | OEM 50580-2001
Pump Flexible Impeller Clutch Driven 50580 Series 92.7 LPM 24V 2A Pulley 1
Pump Flexible Impeller Clutch Driven 50580 Series 92.7 LPM 24V 2A Pulley 1" BSP Ports Bronze
EEPN: 04.16.0171
Special Price AED 2,872.50
50% OFF |
Regular Price AED 5,745.00
In Stock
Pump clutch 1B pulley 24V 21 Gpm BSP port Bronze body for bilge & deckwash application
Pump clutch 1B pulley 24V 21 Gpm BSP port Bronze body for bilge & deckwash application
EEPN: 04.16.0173
AED 5,745.00
Out of Stock
Pump clutch 1B pulley 12V 21 Gpm BSP port Bronze body for bilge & deckwash application
Pump clutch 1B pulley 12V 21 Gpm BSP port Bronze body for bilge & deckwash application
EEPN: 04.16.0172
Special Price AED 3,734.25
35% OFF |
Regular Price AED 5,745.00
In Stock

Download Document

Datasheet
document-text

Description

Jabsco Pump clutch 2A pulley 12V 21 Gpm BSP port Bronze body for bilge & deckwash application

cog

General Specification

50580-2001 1" bronze pump, 80-size, foot mounted with BSP threaded ports

12 volt dc electric clutch with 2A pulley

  • Connections: 1” BSP internal threaded ports.
  • Dimensions: 160mm long, 180mm pulley diameter
  • Fuse Size: 5(amp)
  • Output: at 1500 rpm 80 litres/minute (17.5 galls/min) at 3m total head
  • Bilge and deck wash pump
  • Bronze body, stainless steel shaft, mechanical shaft seal
  • Neoprene impeller fitted as standard for maximum performance with clean or lightly contaminated water. Nitrile option for use with oily water
  • Self-priming up to 2m vertical lift
  • Can handle moderate amounts of suspended solid matter
  • Actual Weight: 7.51 Kg  (Approx. 8.51 Kg packed)
