Pump clutch manual 21.7 Gpm 1" BSP port A&B pulley belt suitable for bilge & deckwash application

Jabsco
AED 9,012.00 Excl. tax

Stock Status: Out of stock

EEPN 04.16.0182 | OEM 51580-2001

Download Document

Datasheet
document-text

Description

Jabsco Pump clutch manual 21.7 Gpm 1" BSP port A&B pulley belt suitable for bilge & deckwash application

cog

General Specification

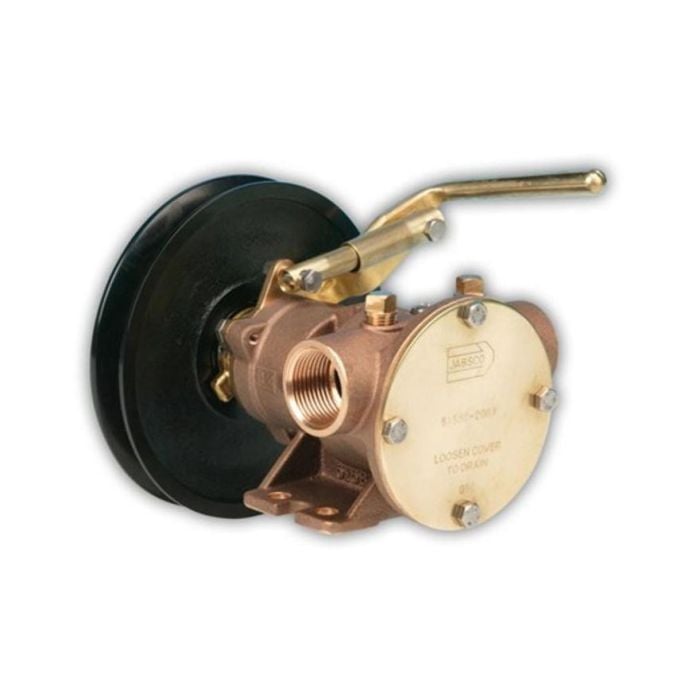

51580-2001 1" bronze pump, 80-size, foot mounted with BSP threaded ports

Manual clutch with 1A / 1B pulley

  • Connections:- 1” BSP internal threaded ports.
  • Dimensions:- 198mm long, 180mm pulley diameter
  • Output:- at 1500 rpm 80 litres/minute (17.5 galls/min) at 3m total head
  • Bilge and deck wash pump
  • Bronze body, stainless steel shaft, mechanical shaft seal
  • Neoprene impeller fitted as standard for maximum performance with clean or lightly contaminated water. Nitrile option for use with oily water
  • Self-priming up to 2m vertical lift
  • Self-adjusting clutch
  • Actual Weight: 6.28 Kg  (Approx. 7.28 Kg packed)
