Pump PARMax4 4.3 Gpm 24V self- priming 31705 series for bilge, livewell & general purpose applications

Jabsco
AED 1,496.00 Excl. tax

Stock Status: In stock

EEPN 04.16.0112 | OEM 31705-0094
Kit diaphragm for PAR-max 4 (31705 series) 04.16.0111 & 04.16.0112
Kit diaphragm for PAR-max 4 (31705 series) 04.16.0111 & 04.16.0112
EEPN: 04.16.0113
AED 162.00
Out of Stock
Pump PARMax4 4.3 Gpm 12V self- priming 31705 series for bilge, livewell & general purpose applications
Pump PARMax4 4.3 Gpm 12V self- priming 31705 series for bilge, livewell & general purpose applications
EEPN: 04.16.0111
AED 1,288.00
Out of Stock

Download Document

Datasheet
document-text

Description

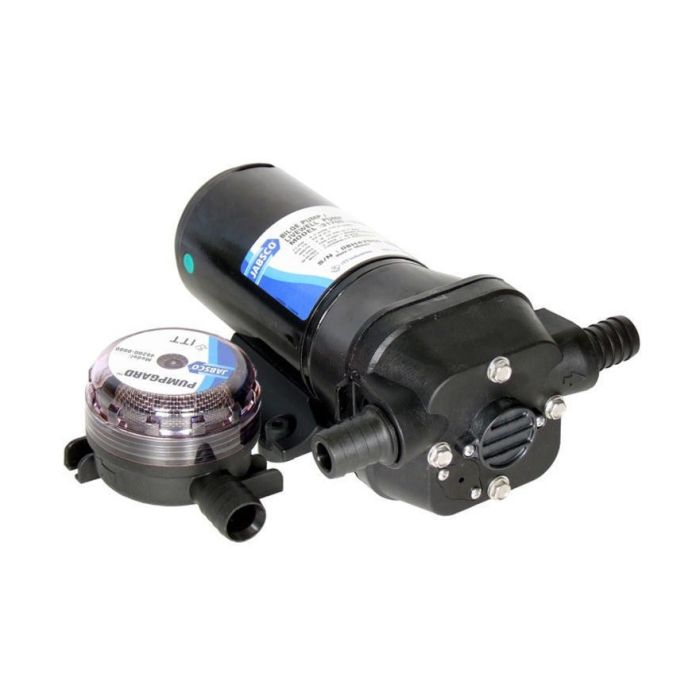

31705-0094 Self-priming diaphragm pump 24 volt d.c with connections for 19mm bore hose

cog

General Specification

  • Connections:- for 19mm (¾”) bore hose
  • Dimensions:- 248mm long, 106mm wide, 100mm high
  • Fuse Size:- 10(amp)
  • Output:- up to 16 litres/minute (3.5 gallons/minute). Maximum recommended total head 4m
  • For bilge pumping, shower drain or livewell circulation
  • Continuously rated motor with thermal overload protection
  • Multiple diaphragm design allows extended dry running
  • Self-primes up to 2.5m vertical lift
  • Jabsco ‘Pump Guard’ strainer included with pump
  • Packaged Dimensions: L:17.00 x H:11.00 x W:34.00cm
  • Actual Weight: 2.91 Kg  (Approx. 3.41 Kg packed)
