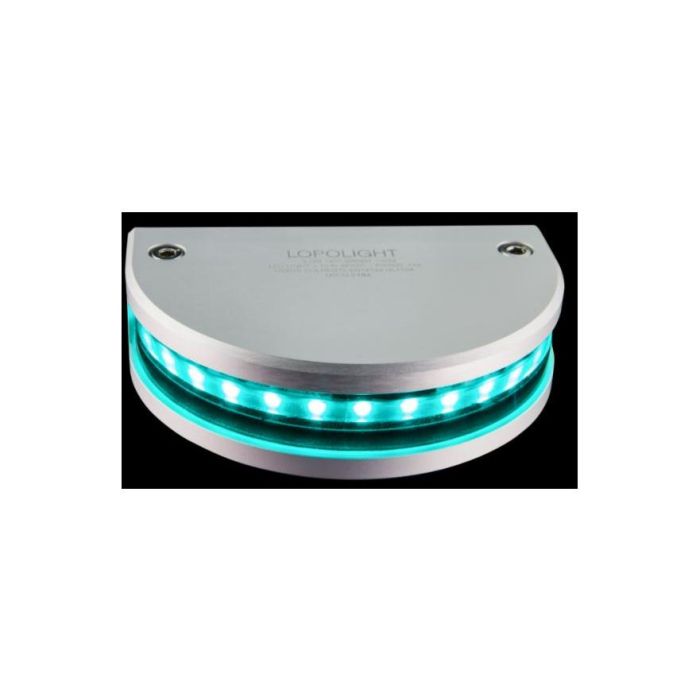

Navigation 180 deg. green 0-50m 3nm 10-32V vertical mount Aluminium light
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
Navigation light, 3nm 180° Green, vertical mount with 0.7 meter cable
LED (Light Emitting Diode) navigation light.
Unique and precise definition of light angles.
Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics.
Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin.
Waterproof to IP 68+ (submersible).
Low power consumption – 70 to 90% less than traditional navigation lights.
Full brightness with input voltages ranging from 10 to 32 Volts.
All Lopolights have been tested several times during production, a total of more than 24 hours.
General Specification
| Approvals | Worldwide type approval |
| Included in package | 1 Navigation light assembly pre-cabled with 0,7 meter marine grade cable, Special mounting adaptor for easy installation on vertical surface Installation guide |
| Materials | Silver anodized aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane. |
| Supply voltage | 10-32 VDC |
| Power consumption | 2,5 WattCurrent @ 12 VDC: 0,2 A: Current @ 24 VDC: 0,1 A |
| Light colors | Green |
| Intensity | >15 cd |
| Visibility (@K=0.8) | 3nm |
| Number of LED's | 13 |
| Vessel size | 50 meter (164 feet) |
| Suggested feed cables | 12 VDC:2 sets of 2 x 0,50 mm2 (maximum outer diameter 7mm), 24 VDC:2 sets of 2 x 0,25 mm2 (maximum outer diameter 7mm) |
| Mounting | Vertical |
