Navigation 2nm starboard 12-50m 10-32V side mount silver anodized light, Green
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description

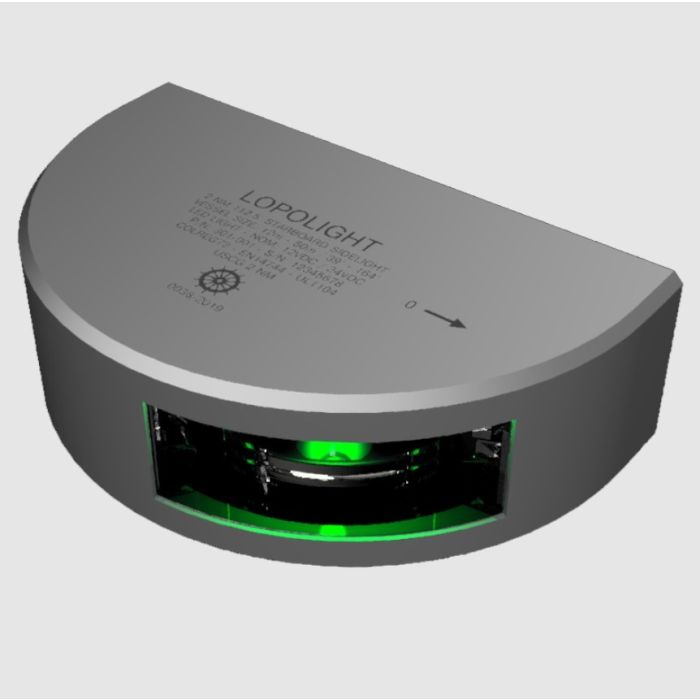

Navigation light, 2nm 112,5° Starboard sidelight, single, vertical mount with 2.5 meter cable
New generation
LED (Light Emitting Diode) navigation light.
Unique and precise definition of light angles.
Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics.
Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin.
Waterproof to IP 68+ (submersible).
Low power consumption – 70 to 90% less than traditional navigation lights.
Full brightness with input voltages ranging from 10 to 32 Volts.
All Lopolights have been tested several times during production, a total of more than 24 hours.
Easy to install, screws included.
General Specification
| Approvals | Worldwide type approval |
| Included in package | 1 Navigation light, precabled with 2,5 meter shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide |
| Materials | Anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane |
| Supply voltage | 10-32 VDC |
| Power consumption | 1,4 Watt, Current @ 12 VDC: 110 mA: Current @ 24 VDC: 60 mA |
| Light colors | Green |
| Intensity | >5,4cd |
| Visibility (@K=0.8) | 2nm |
| Number of LED's | 1 |
| Vessel size | 12-50 meters (39,4-164 feet) |
| Suggested feed cables | 12 VDC: 2 x 0,50 mm2, 24 VDC: 2 x 0,50 mm2 |
| Mounting | Vertical |
