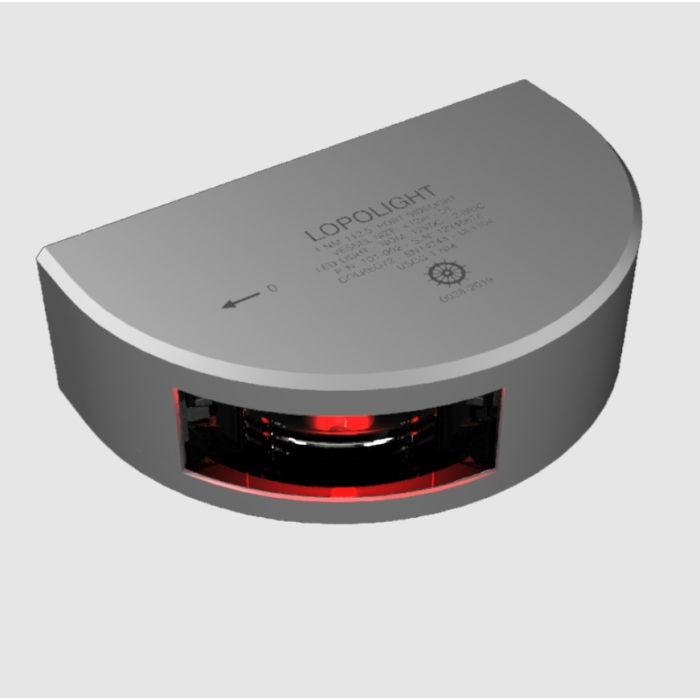

Navigation Port 0-12m 10-32V side mount Aluminium light

AED 1,355.00 Excl. tax

Stock Status: In stock

EEPN 09.02.0141 | OEM 101-002

Download Document

document-text

Description

Navigation light,112,5° port sidelight, single, vertically mounted

New generation.
LED (Light Emitting Diode) navigation light.
Unique and precise definition of light angles.
Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics.
Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin.
Waterproof to IP 68+ (submersible).
Low power consumption – 70 to 90% less than traditional navigation lights.
Full brightness with input voltages ranging from 10 to 32 Volts.
All Lopolights have been tested several times during production, a total of more than 24 hours.

cog

General Specification

Approvals Worldwide type approval
Included in package 1 Navigation light, precabled with 2,5 meter shielded marine grade cable,
2 Mounting screws (M6 * 8 mm),
Installation guide
Materials Anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
Supply voltage 10-32 VDC
Power consumption 0,7 Watt, Current @ 12 VDC: 52 mA: Current @ 24 VDC: 32 mA
Light colors Red
Intensity >1,2cd
Visibility (@K=0.8) 1nm
Number of LED's 1
Vessel size 12 meter (39,4 feet)
Suggested feed cables 12 VDC: 2 x 0,50 mm2,
24 VDC: 2 x 0,50 mm2
Mounting Vertical
