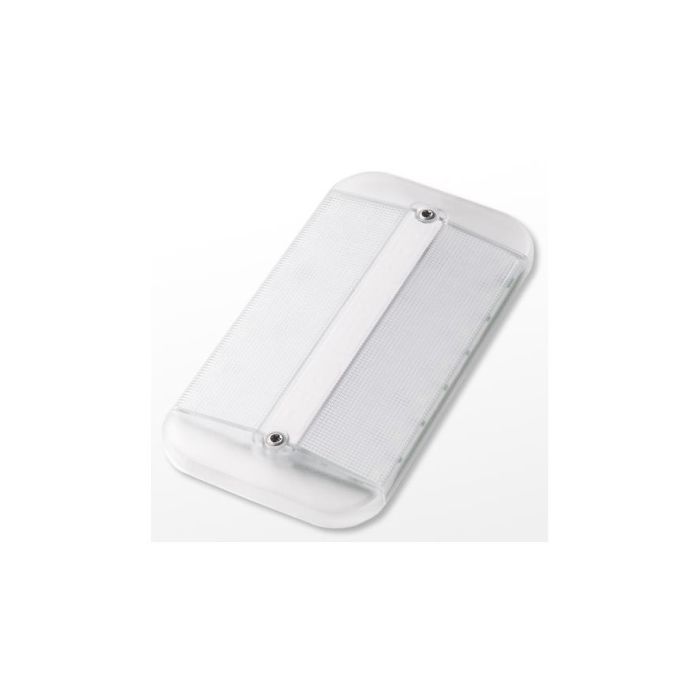

Light LED touch F-28 12/24V surface mount 170 mm x 90 mm
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
F-28 TouchLED, Clear, Cool White, 10-30VDC, Surface Mount, IP67
F-28 TouchLED is an extremely efficient, super high output, low-profile surface-mounted fixture designed for environments prone to extreme water exposure and high shock loads/vibration. Its integrated driver and rear or side-entry cabling provide ease and flexibility for mounting. This model is controlled by a convenient on-board "touch" activation feature. For models with standard remote switch activation, refer to the standard F-28 models.
General Specification
|
Trim Ring (Bezel) Finish/Material |
Semi-transparent Polycarbonate |
| Housing Finish/Material | Polycarbonate |
| Lens Material | Polycarbonate |
| Trim Ring (Bezel) Dimensions | 6.70 x 3.54" (170 x 90mm) |
| Integrated Switch | Yes (Touch Sensor) |
| Input Voltage | 10-30VDC |
| Power Consumption | 7W |
| Driver | Integrated |
| Output Color | Cool White |
| Luminous Flux | 600 lm |
| Correlated Color Temperature (CCT) | 5700K |
| Color Rendering Index (CRI) | 75 |
| Beam Angle | 80° |
| Lifetime Hours | 50,000 |
| Mounting Method | Screws |
| Ingress Protection | IP67 |
| Class | Class III, F-Rated |
| Electrical Protections | Reverse Polarity, Transients, EMI |
| Certifications & Compliance | CE, ROHS, Igntion protection certified to USCG/ISO/SAE/NMMA standards |
| Manufacturer | Frensch |
| Warranty | 3 Years |
