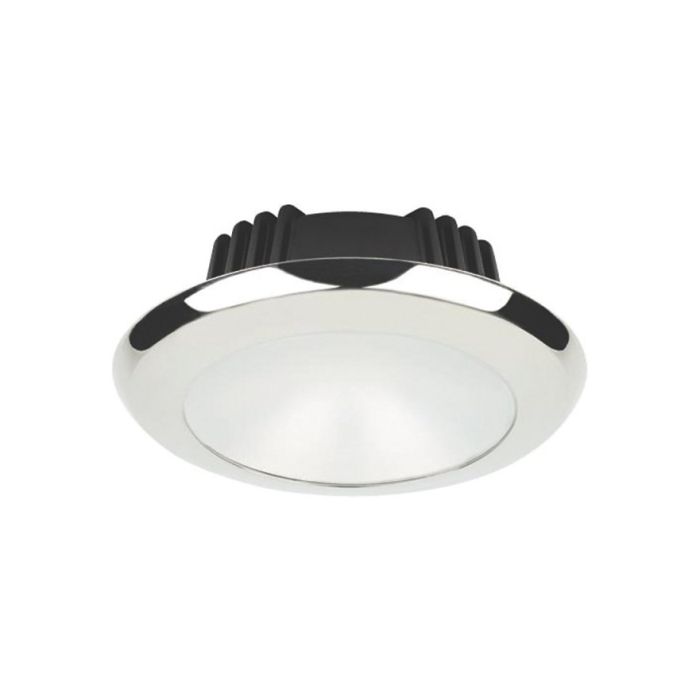

Downlight LED Sigma Small 12/24/32V AC/DC 5W Cool White Brushed Stainless Steel IP65 Dimmable
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
Sigma is designed to fit a range of cutout holes is able to be screwed or spring-mounted and is dimmable using exiting dimmers and the boat’s two-wire cabling. (DC voltage only)
- 2-Wire Dimming – Sigma is designed to be powered and controlled by the vessel’s existing 2-wire cabling. No additional wires needed to run power and dimming functions!
- These lights can be operated from any normally open push button switch for fullon- fulloff-& dimming control
Sigma Installation
Sigma Small
fits flush into a very common hole cutout size; may be either screw or spring mounted
Sigma Large
shares the same light engine but is equipped with a special adapter plate and larger diameter trim ring to fit a range hole cutout sizes; may be screw or spring mounted
Sigma Surface-Mount
shares the same light engine and features a sleek mounting bezel for installation wherever recessing is not possible
General Specification
| Colour | Warm white or cool white |
| Beam angle (FWHM) | 83° |
| Power consumption | 5W |
| Luminous flux (Lm)* | 197 |
| Lifetime hours (70% light output) | 50,000 |
| Halogen equivalency | 25W |
| Input voltage | 10-40VAC/DC |
| Ingress protection (IP) | IP65 |
