Dimmer LED PWM ILIM80120 12/24V for Imtra Single and Bi-Colour PowerLED Lights 30 Fixtures Max IP40
AED 395.00
Excl. tax
50% OFF
|
AED 790.00
Excl. tax
Stock Status: In stock
EEPN 09.05.0396
|
OEM ILIM80120
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description

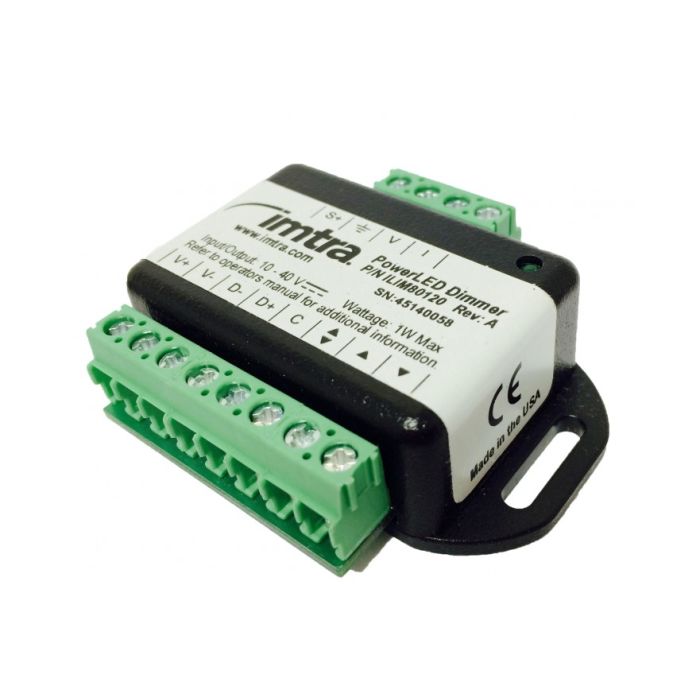

Imtra’s model ILIM80120 LED Dimmer Module provides dimming for all IMtra's 4-wire (single color) and 5-wire (bi-color) PowerLED Downlights (including Captiva) and supports several functions including digital PWM output and four modes of analog input including 0-10V Sink, 0-10V Sink/Source, 4-20mA, 10KΩ-100KΩ Potentiometer.
General Specification
| Housing Material | Black flame retardant ABS (UL94V-0) |
| Dimensions | 0.80" (20mm) H x 2.66" (68mm) W x 2.08" (53mm) Depth |
| Voltage Input | 10-40VDC |
| Capacity | 30 PowerLED Units |
| Base Dimensions | 2.66" (68mm) x 2.08" (53mm) |
| Power Consumption | 1W Max |
| Dimmer Compatibility | 4/5-wire Imtra PowerLEDs (& Captiva) |
| Load Rating | 30 PowerLED fixtures (different wattages) |
| Dimmer Control Interface | Single or Double Throw NO Momentary Push-buttons (Multiple, wired in parallel) |
| Mounting Method | Screw Mounting |
| Ingress Protection | IP40 (applies only to frontal water exposure, i.e. Exposed surface) |
| Class | III |
| Certifications & Compliance | CE |
| Manufacturer | Imtra |
