Kit fuel connection FTL5115B for rigid tank of max depth 970 mm with Dia. 51 mm filler Dia. 15 mm supply/return & Dia. 16 mm vent connection

AED 1,104.00 Excl. tax

Stock Status: Out of stock

EEPN 04.03.0107 | OEM FTL5115B
document-text

Description

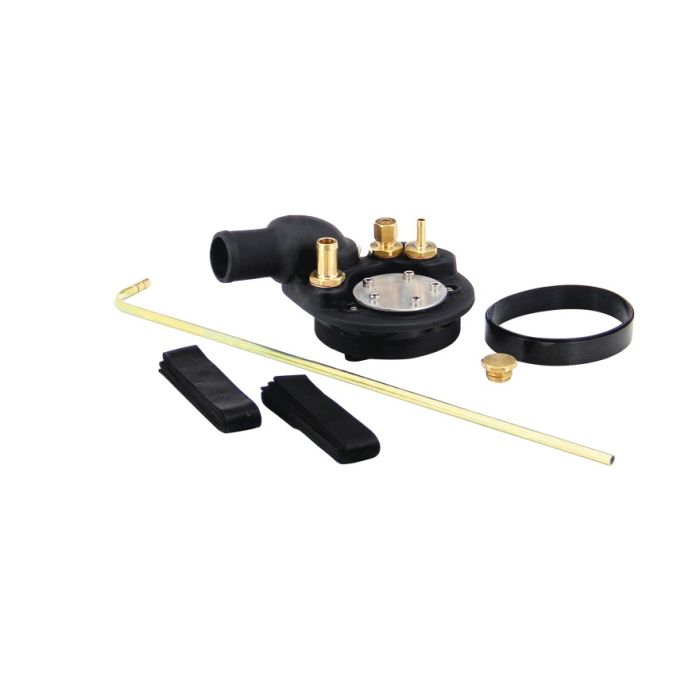

Fuel connection kit, filler 51 mm, supply/return Ø 15 mm, vent 16 mm
FTL5115B

The kit contains all required connections and saves considerable installation time. Suitable for use with diesel and petrol fuel.
This connection kit has an anodized, salt water resistant aluminium lid with a counter flange and arubber seal which is tightened very easily with just 3 bolts compressing the rubber seal to ensure a perfect seal.
The set contains all the required connections, only 1 single hole with a diameter of 114 mm needs to be cut in the top of the fuel tank.
This connection kit is suitable for plastic, metal or GRP diesel or petrol fuel tanks.

The following connections are supplied
- Hose connection for filling Ø51 mm and a 16 mm tank ventilation connection
- Fuel suction pipe according to model selected
- Ø15mm, max. tank depth 970 mm
- Fuel return for Ø15 mm hose
- Mounting flange for tank level sensors (connection is suitable for sensors with a 5-hole SAE flange)
- Terminal tag 6,3 mm for ground wire
- 2 Mounting straps to secure tank

cog

General Specification

EE Part number 04.03.0107
OEM part number FTL5115B
FUEL SUCTION PIPE (MM) 15
FUEL RETURN (MM) 15
SUITABLE FOR Diesel
TERMINAL TAG FOR EARTH WIRE (MM) 6.3
FUEL FILLING HOSE DIAMETER (MM) 51
HOSE CONNECTOR FOR BREATHER LINE (MM) 16
