Kit fuel connection FTL5110B for rigid tank of max depth 850 mm with Dia. 51 mm

Fuel connection kit, filler 51 mm, supply/return Ø 10 mm, vent 16 mm
FTL5110B

The kit contains all required connections and saves considerable installation time. Suitable for use with diesel and petrol fuel.
This connection kit has an anodized, salt water resistant aluminium lid with a counter flange and arubber seal which is tightened very easily with just 3 bolts compressing the rubber seal to ensure a perfect seal.
The set contains all the required connections, only 1 single hole with a diameter of 114 mm needs to be cut in the top of the fuel tank.
This connection kit is suitable for plastic, metal or GRP diesel or petrol fuel tanks.

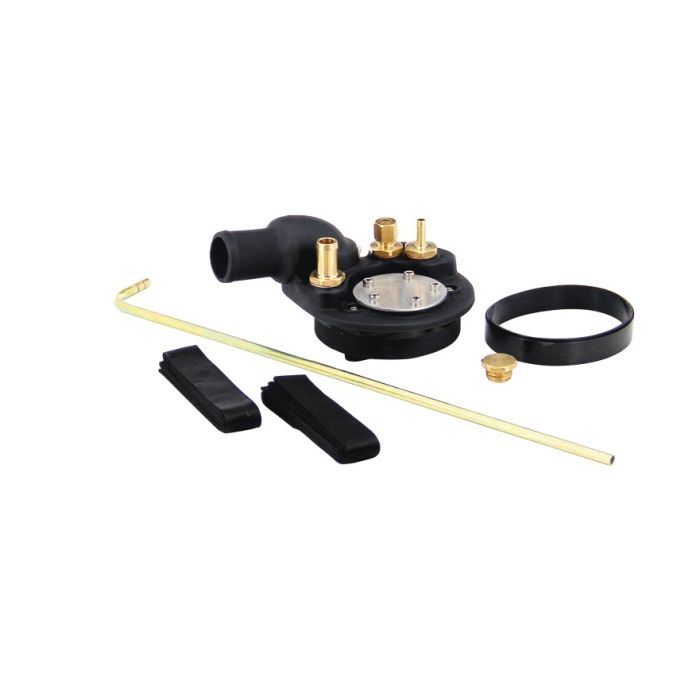

The following connections are supplied
- Hose connection for filling Ø51 mm and a 16 mm tank ventilation connection
- Fuel suction pipe according to model selected
- Ø10 mm, max. tank depth 850 mm
- Fuel return for Ø10mm hose
- Mounting flange for tank level sensors (connection issuitable for sensors witha 5-hole SAE flange)
- Terminal tag 6,3 mm for ground wire
- 2 Mounting straps to secure tank
