Kit fuel connection FTL3808B for rigid tank of max depth 440 mm with Dia. 38 mm

AED 1,006.00 Excl. tax

Stock Status: In stock

EEPN 04.03.0103 | OEM FTL3808B
document-text

Description

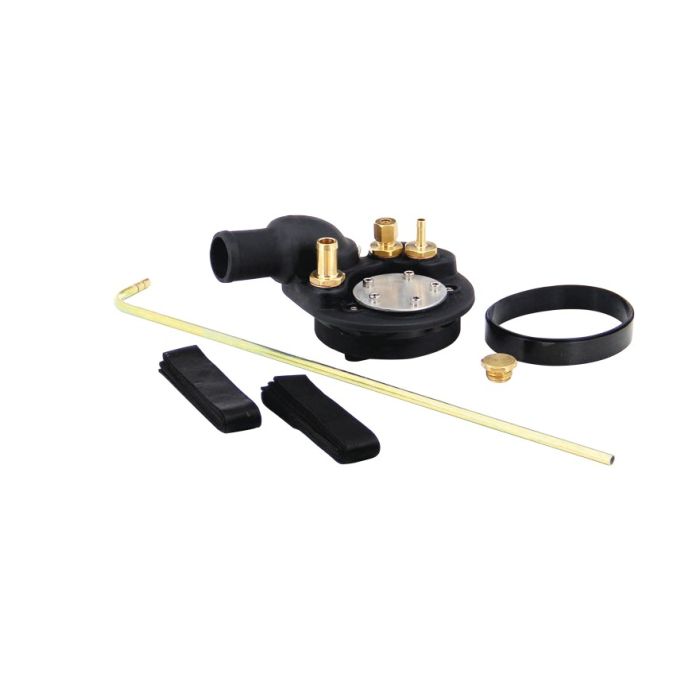

Kit fuel connection FTL3808B for rigid tank of max depth 440 mm with Dia. 38 mm filler Dia. 8 mm supply /return & Dia. 16 mm vent connection.

Fuel connection kit, filler 38 mm, supply/return Ø 8 mm, vent 16 mm
FTL3808B

The kit contains all required connections and saves considerable installation time. Suitable for use with diesel and petrol fuel.
This connection kit has an anodized, salt water resistant aluminium lid with a counter flange and arubber seal which is tightened very easily with just 3 bolts compressing the rubber seal to ensure a perfect seal.
The set contains all the required connections, only 1 single hole with a diameter of 114 mm needs to be cut in the top of the fuel tank.
This connection kit is suitable for plastic, metal or GRP diesel or petrol fuel tanks.

The following connections are supplied
- Hose connection for filling Ø 38mm and a 16 mm tank ventilation connection
- Fuel suction pipe according to model selected
- Ø8 mm, max. tank depth 440 mm
- Fuel return for Ø8 mm hose
- Mounting flange for tank level sensors (connection is suitablefor sensors with a5-hole SAE flange)
- Terminal tag 6,3 mm for ground wire
- 2 Mounting straps to secure tank

cog

General Specification

EE Part number 04.03.0103
OEM part number FTL3808B
FUEL SUCTION PIPE (MM) 8
FUEL RETURN (MM) 8
SUITABLE FOR Diesel
TERMINAL TAG FOR EARTH WIRE (MM) 6.3
FUEL FILLING HOSE DIAMETER (MM) 38
HOSE CONNECTOR FOR BREATHER LINE (MM) 16
