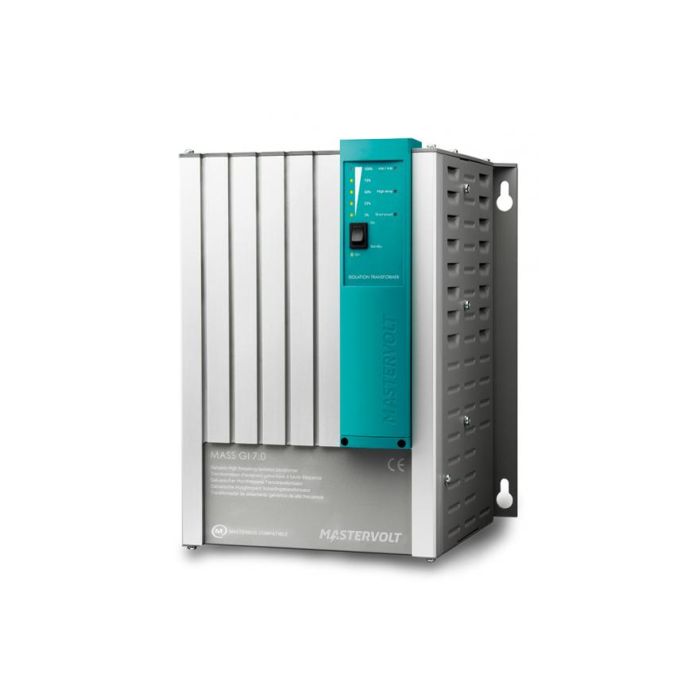

Isolation transformer Mass GI 7

AED 10,496.00 Excl. tax

Stock Status: Out of stock

EEPN 08.08.0002 | OEM 88000705
document-text

Description

A safe connection between vessel and shore installation is an essential part of your electrical system. A galvanic electrical isolation between shore power and the on board power prevents any electrical corrosion of metal parts while keeping you earthed.

  • Ultra modern high-frequency electronic switch technology.
  • Lightweight and compact.
  • Integrated Soft Start function.
  • Connect to voltages from 90 to 255 V and from 45 to 65 Hz.
  • Units can be parallel coupled for higher capacity.
  • Higher efficiency, limited heat development.

Modern transformer technology: Light, silent, reliable and easy

The Mass GI is supplied with the latest high-frequency switching technology as well as Soft Start for peak loads when connecting to the grid. LED lights on the casing indicate load and overload. The transformer can be remote controlled. The Mass GI is 75 % lighter and 60 % smaller than to low frequency transformers.

Higher capacity via parallel switching

Parallel switching of the Mass GI units increases the AC power capacity. Two 16 A/3.5 kW units ensures 32 A/7 kW, four units give 64 A/14 kW.

Install anywhere

With its robust aluminium casing, this isolation transformer can be fitted in any position on wall or floor. No rubber mountings are necessary because the unit does not vibrate or hum. The Mass GI also features professional connections with strain relief cable glands.

cog

General Specification

Input frequency range45-65 Hz

Output voltage (± 5 %) 90-255 V
Output frequency range 45-65 Hz
Input voltage range 90-255 V
Nominal input current (230 V) 32 A
Galvanic isolation yes
Efficiency > 93 %
Power 230 V (120 V) 7000 VA (3840) VA
Dimensions, hxwxd 340 x 261 x 250 mm 13.4 x 10.3 x 9.8 inch
Weight 10 kg 22.0 lb
Approvals CE, ABYC
