Mastervolt Battery Lithium Ion 12V 90Ah 1.2Kw
Download Document
Description
Description

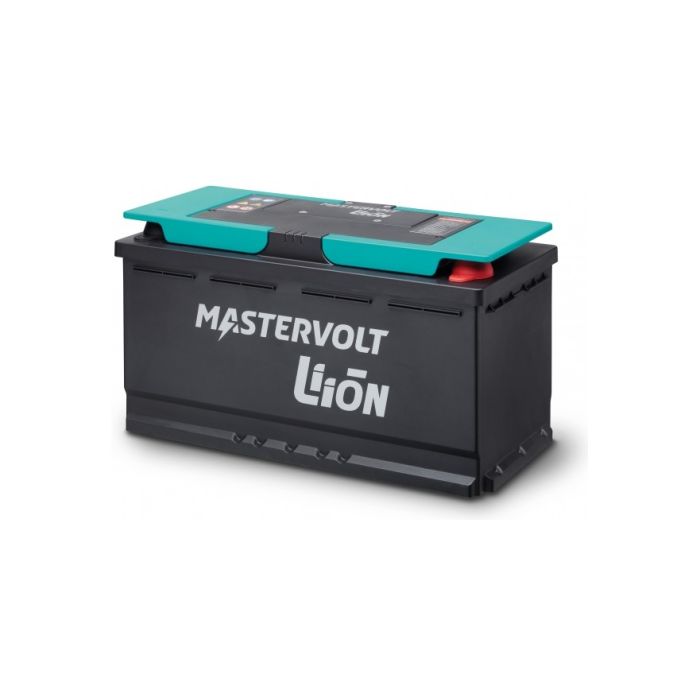

Lithium ion battery MLI-E 12/1200
The Mastervolt MLI-E Lithium Ion battery closes the gap between the very compact MLS battery and the successful high capacity MLI Ultra series.
The MLI-E is ideal for applications where long lifespan, light weight, fast charging and compactness are key. Its practical form factor makes the MLI-E perfectly suitable for mobile applications.
Compact, maintenance free power, ideal for mobile applications
Lithium Ion has many advantages over lead-acid.
The MLI-E saves up to 70 % in space and weight, recharges in less than an hour, and deep cycles 5.000 times easily, which is up to 10 times longer than lead-acid batteries.
The MLI-E can replace a 180-200 Ah lead-acid battery. Also, for the MLI-E the extremely safe Lithium Ion (LiFePO4) chemistry is used.
No external safety relay is needed. The MLI-E is protected against overcharging, deep discharging and overheating and comes with an integrated electronic safety switch.
With its plastic case, the MLI-E is a straight-forward replacement for most lead-acid batteries.
LED indicators inform you about the actual status of your battery.
Of course, the MLI-E is provided with integrated battery monitoring, including information about state of charge and time remaining.
For optimal integration in both mobile and maritime power systems, both NMEA2000 / CZone and CANopen protocols are supported.
Needless to say, the MLI-E fits perfectly into a MasterBus system, when combined with our system monitor EasyView 5*.
And last but not least: hands-on monitoring is available, using Bluetooth and a mobile app.
Features
-Very long lifespan, maintenance free.
-Fast charging and discharging, fully charged within an hour.
-Straight-forward replacement for most existing lead-acid batteries (EqPb: 200 Ah).
-Compact, practical size.
-Extremely safe Lithium Ion chemistry (LiFePO4).
-Integrated safety switch for quick and easy installation.
-High performance even under harsh conditions.
-High efficiency and low self-discharge.
-Integrated battery monitoring for reliable battery status information.
-System integration via NMEA2000 / CZone, CANopen or MasterBus (via EasyView 5*).
-Monitoring via Bluetooth app possible.
-Applications
Its size, weight, tough case and resistance to shocks makes the MLI-E ideal for mobile applications.
Other applications range from marine, infrastructure, off-grid to industrial applications.
Product delivered with 2x automotive battery pole, 2x M8 bolt, hexagon tool, USB stick (with manual).
* Max. two MLI-E batteries per EasyView 5.
Refer to manual for details.
General Specification
| EE Part number | 08.02.0091 |
| Model | MLI-E 12/1200 |
| OEM part number | 66011200 |
| Nominal voltage | 12V |
| No load voltage, fully charged | 13.2V |
| Nominal capacity (Cn) | 90Ah |
| Nominal energy | 1.2 kWh |
| Approximate weight | 12.5 kg (27.6 lb) |
| Terminal type | Bolts M8 or Automotive |
| Chemistry | Lithium iron phosphate |
| Rated capacity | 90Ah (1.2 kWh) |
| Cycle life | ~ 5000 @ 80% DOD and 23ºC |
| Parallel configuration* | Yes, unlimited |
| Series configuration* | No |
| Operating temperature** | –40 to 65ºC / –40 to 149ºF |
| Nominal operating temperature: | 25ºC / 77ºF |
| Storage temperature** | –40 to 65ºC / –40 to 149ºF |
| Self-discharge | < 4% per month @ 23ºC |
| Warranty | 2 years |
| Protection degree | IP51 |
| Standards, approvals & listings | CE, E-mark |
| Length (L) | 353 |
| Width (W) | 175 |
| Height (H) | 190 |
| Installation angle | Mountable in multiple orientations, suitable for LN5 fastening brackets |
| MasterBus connectivity | Yes (see chapter 1) |
| Powering capabilities for MasterBus | No, cuts power to the bus (see section 3.4) |
| Internal disconnect switch | Yes |
| NMEA 2000 connectivity | Yes |
| Bluetooth | Yes, 10m (class 2) |
| * For systems with more than one single battery, please refer to www.mastervolt.com/batteries. | |
| ** Temperatures below 5ºC/41ºF and above 25ºC/77ºF may affect life time and cycle life. | |
| Charging: derating <0°C and >45°C / <32°F and >113°F | |
