Hydraulic steering kit for Outboard engines up to 80 HP
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
Description

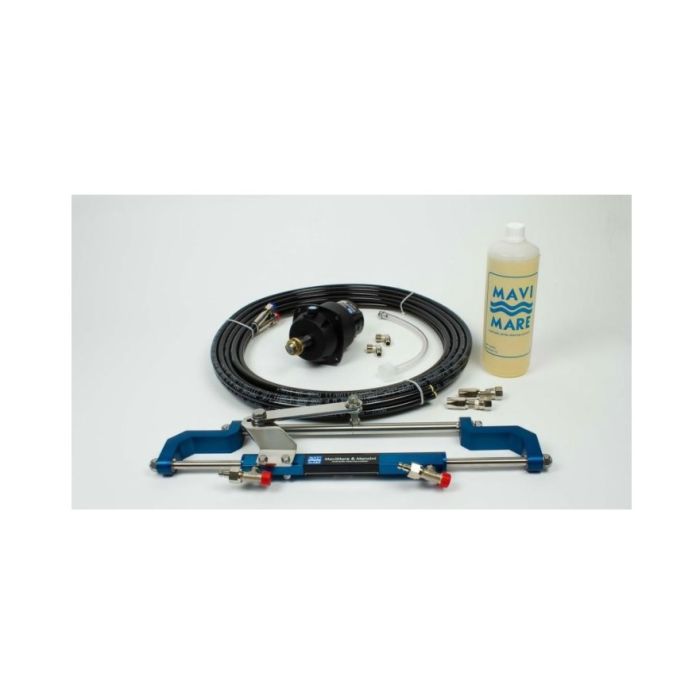

Hydraulic steering kit for upto 80HP OB engines
GF90BT
Kit composed of:
- Pump GM3-MRA + cylinder MC90B + fittings Kit (1 kit GTN7x10916+ 1 Kit AC10/T916 )+ 2 x 5 mtr hoses SAE 100 R7 1/4 + 1Ltr. hydraulic oil + fast connection filler tube kit .
- Turns head to head : 5.2.
- Kit supplied with 2 hoses of 5 mtr each , with fittings pressed on one end.
Cylinder technical features :
- Frontal mounting cylinder bull horn type.
- Universal compact cylinder
NEW: support rod comes in two pieces for easy and fast installation, expecially where space is a constraint & on the splash well.
NOTE: Use kit 06.01.0113 (X.342) for applications on Yamaha 40/50/60/70 HP engines.
| Parts which make up the complete kit and can be ordered separately. | ||
| EE Part number | OEM part# | Description |
| 06.01.0108 | GM3-MRA | Pump |
| 06.01.0109 | MC 90B | Frontal mounting cylinder bull horn type |
| 06.01.0110 | X.372 | Connection filler tube kit |
| 06.01.0111 | H-AP51 | Hydraulic oil |
| 06.01.0112 | SAE100R7 | Kit comprises of 2 hoses with fittings (2 x 5 m hose) |
| Cylinder details: | |
| Volume (cm³) | 75 |
| Stroke (mm) | 100 |
| Ø rod shaft (mm) | 12 |
| Pump details: | |
| Capacity (cc) | 14 |
| No. of pistons | 7 |
| max pressure (bar) | 50 |
| Weight (kg) | 2.4 |
General Specification
No specifications available.
