Battery selector switch 701S-PM
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description

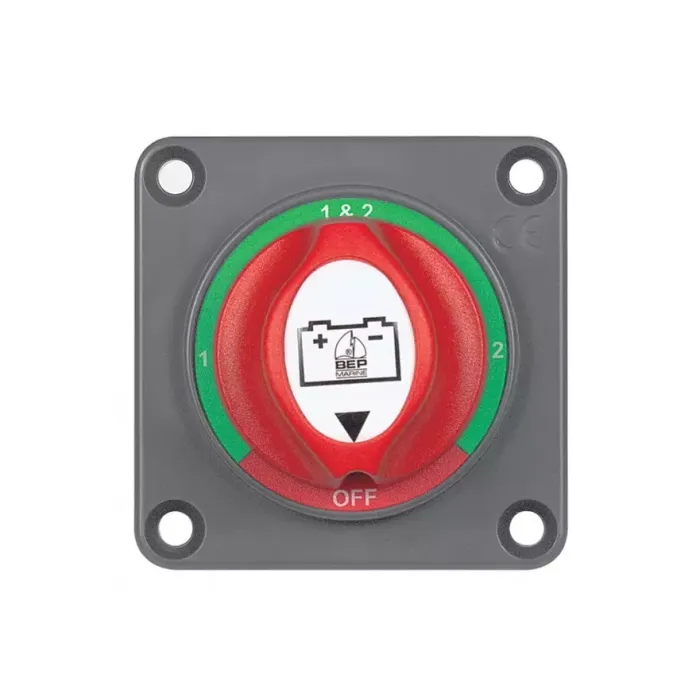

Panel-Mounted Battery Mini Selector Switch
701S-PM
Panel-mounted switches are designed specifically for panel mount applications. This range gives a very compact, versatile solution.
-Compact, lightweight
-Removable key
-Countersunk recesses for surface mount application
-Standard 2-1/16" (52 mm) hole cut out (same as standard gauge hole)
-Inside: captive inserts for 3/16" (4.8 mm) nuts providing full access for cables with no restrictions
-Standard interchange label system
-Molded in high temperature, fiber reinforced plastics
General Specification
| Part number | 08.10.0005 |
| Model | 701S-PM |
| L x W x H (mm) | 69 x 69 x 75 |
| Continuous Current rating (dc) | 200 |
| Intermittent Current rating (dc) | 300 |
| Cranking Current rating (dc) | 1000 |
| Voltage (V dc) | 48 |
| Operation | 1-2-Both-off |
| Stud size Studs x (mm) |
3 x 8 |
