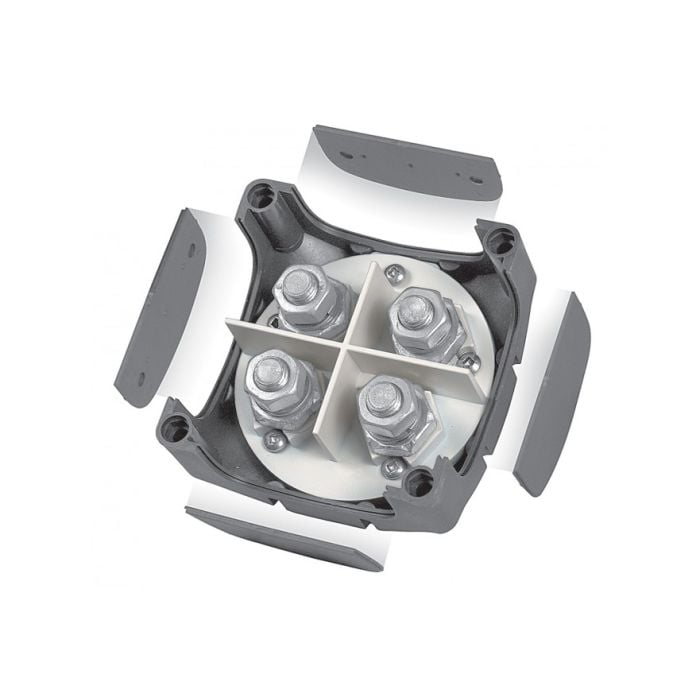

Battery switch 720-DP 2 pole 400A 48V
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
The 720-DP double pole battery switch is a welcome addition to the BEP™ battery switch range. It has the same dimensions and features as the 720 battery switch, but also meets the needs of systems where positive and negative supplies must be isolated at the same time. SAFETY NOTE: BEP recommends the 720-DP for isolating positive and negative circuits. BEP do not recommend it for switching house and start battery systems at the same time. BEP recommends separate switches for house and start for safety reasons. You may need to isolate your engine battery in an emergency and not your house battery, which typically powers the communications
| Part number | Model | L x W x H (mm) |
Current rating (dc) | Voltage (V dc) |
Operation | Stud size Studs x (mm) |
||
| Continuous | Intermittent | Cranking | ||||||
| 08.10.0007* | 720-DP | 102 x 102 x 90 | 400 | 525 | 1500 | 48 | On/off 2 poles | 4 x 12 |
| * Until stock lasts | ||||||||
General Specification
No specifications available.
