Battery switch 701-PM 275A 48V
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description

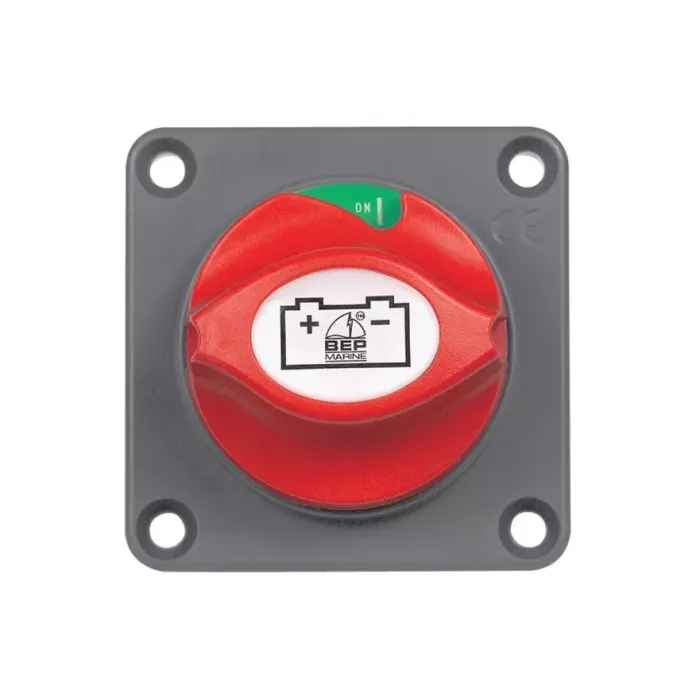

Panel-Mounted Battery Master Switch
701-PM
Panel-mounted switches are designed specifically for panel mount applications. This range gives a very compact, versatile solution.
-Compact, lightweight
-Removable key
-Countersunk recesses for surface mount application
-Standard 2-1/16" (52 mm) hole cut out (same as standard gauge hole)
-Inside: captive inserts for 3/16" (4.8 mm) nuts providing full access for cables with no restrictions
-Standard interchange label system
-Molded in high temperature, fiber reinforced plastics
General Specification
| Part number | 08.10.0004 |
| Model | 701-PM |
| L x W x H (mm) | 69 x 69 x 75 |
| Continuous Current rating (dc) | 275 |
| Intermittent Current rating (dc) | 455 |
| Cranking Current rating (dc) | 1250 |
| Voltage (V dc) | 48 |
| Operation | on/off |
| Stud size Studs x (mm) |
2 x 10 |
