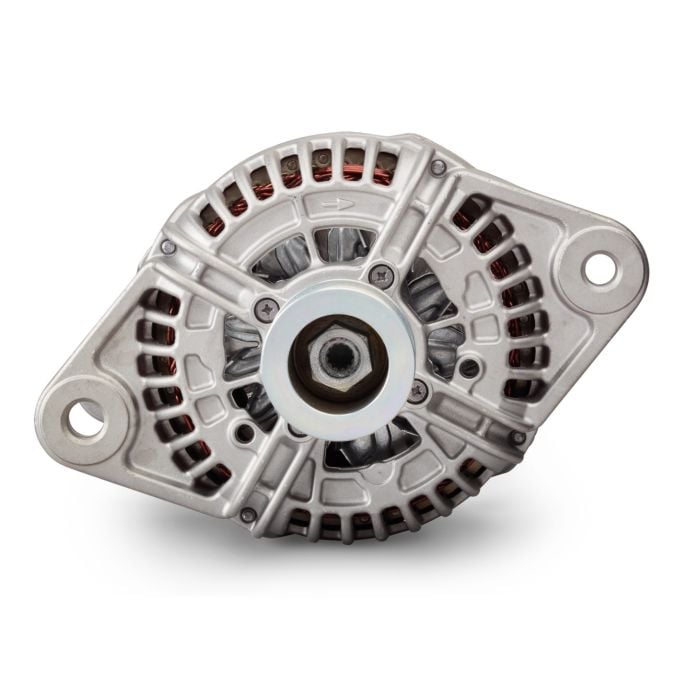

Alternator 28/110 VP

AED 11,165.00 Excl. tax

Stock Status: Out of stock

EEPN 08.06.0025 | OEM 46228112

Download Document

document-text

Description

Description

Alpha Compact alternators are optimized to deliver continuous high power output in energy storage applications. Combined with our Alpha Pro regulators, they create a high performance, plug-and-play charging solution. This combination is suitable for all battery types, including Lithium-ion. These automotive style alternators offer many advantages. Most manufacturers offer a second alternator option, better known as PTO or Power Take Off option. This provides a straight-forward way to add an Alpha Compact as a second alternator. Alternatively, the stock alternator can be replaced with an Alpha Compact to obtain a powerful, MasterBus enabled 3-step charger. Compared to conventional alternators, Alpha Compact offers lower weight, smaller dimensions and reduced fuel consumption. This is made possible by its open construction with double internal fans. An integrated temperature sensor controls the operating temperature. The Alpha Compact series consists of 7 models in 12 V and 24 V. Finding the right alternator for a specific application can be challenging. The Alpha Compact 14/200 and Alpha Compact VP models are fitted with a multi-groove pulley as standard. Worldwide use in marine, mobile, infrastructure and industrial applications.



Key Features

  • Plug and play solution (please note: delivery excluding Alpha Pro III charge regulator).
  • Suitable for high ambient temperatures.
  • Patented magnetic design.
  • Up to 40 % lighter and 25 % more compact than conventional alternators.
  • Up to 30 % lower fuel consumption.
  • High charge current at idle RPM.
  • Cable and electronics protect against oil, moisture and dirt.
  • A wide range of accessories are available.





cog

General Specification

Charge regulation via optional Alpha Pro III charge regulator
Isolated operation Yes, with optional isolation bushings
Rotational direction Clockwise
Galvanic isolation Non-isolated
Cooling Integrated dual fan
Mounting Swivel arm
Pulley included Yes
Weight 7.4 kg
