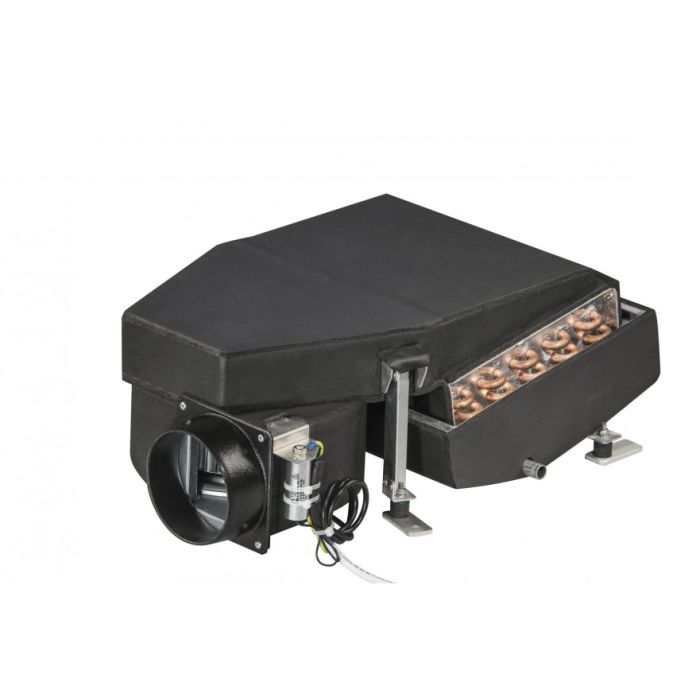

Air handler A9 low profile 9000 BTU 230V 50Hz

Air handler A9 low profile 9000 BTU 230V 50Hz
Webasto
AED 4,560.40 Excl. tax
35% OFF |
AED 7,016.00

Stock Status: In stock

EEPN 05.02.0186 | OEM WBCL1209006A
Air handler A6 low profile 6000 BTU 230V 50Hz
Air handler A6 low profile 6000 BTU 230V 50Hz
EEPN: 05.02.0185
AED 6,507.00
In Stock
Air handler A18 low profile 18000 BTU 230V 50Hz
Air handler A18 low profile 18000 BTU 230V 50Hz
EEPN: 05.02.0188
AED 9,381.00
Out of Stock
Air handler A12 low profile 12000 BTU 230V 50Hz
Air handler A12 low profile 12000 BTU 230V 50Hz
EEPN: 05.02.0187
AED 7,678.00
Out of Stock
document-text

Description

Webasto Air handler A9 low profile 9000 BTU 230V 50Hz

cog

General Specification

Part number

 05.02.0185 05.02.0186 05.02.0187 05.02.0188
                             - A6 Low Profile A9 Low Profile A12 Low Profile A18 Low Profile
Capacity(BTU/h)** 6,000 9,000 12,000 18,000
Capacity (kW) ** 1.9 2.8 3.6 5.6
Air flow (m³ / h) * 380 420 560 750
Ø Blower connection (mm) 125 (round) 125 (round) 150 (oval) 150 (oval)
Weight (kg) 10 11 13 16
Current draw running (A) 0.5 0.6 0.7 1.1
Ø Chilled water connection 3/4'' 3/4'' 3/4'' 3/4''
Dimensions H x W x L (mm) 205 x 437 x 582 205 x 482 x 606 205 x 516 x 614 205 x 599 x 661
Dimensions with valve H x W x L (mm) 205 x 487 x 582 205 x 532 x 606 205 x 567 x 614 230 x 657 x 661
Minimum chilled water flow (l / h) 406 626 568 793
Number of blowers 1 1 1 1
Max. ambient temperature (°C) 50 50 50 50
Pressure loss chilled water (bar) 0.12 0.15 0.14 0.16
Number of condensate drains 2 2 2 2
Ø Condensate drain (mm) 16 16 16 16

 * With 2 m of air duct, one 90° bend, air outlet grille at 230V , 50 Hz ** Intake air of 32 °C / 47 % rh, water inlet temperautre of 5 °C and at 230 V, 50 Hz
