Verado Fitting Kit for MKII Pumps 1, 2, 3, 4 & 5

Description

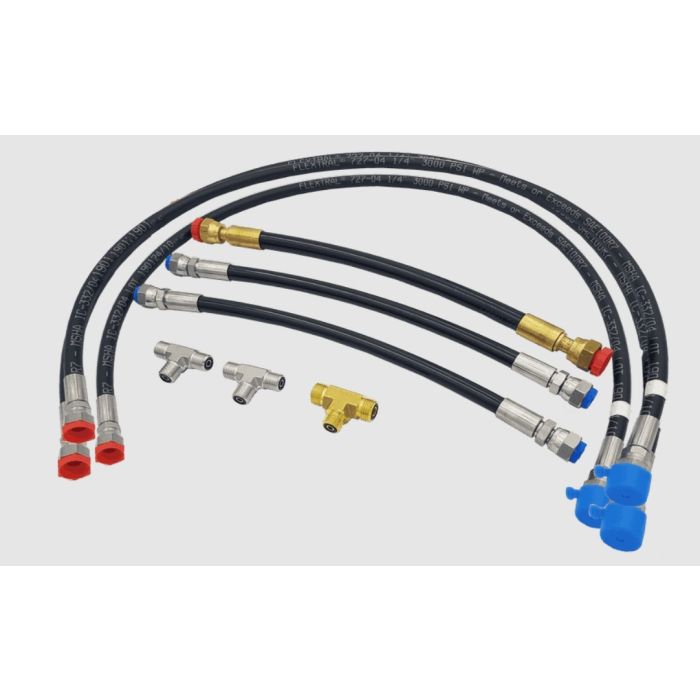

The Verado Autopilot Fitted Hose Kit is engineered for a simplified and reliable installation process, particularly for Verado Autopilot systems. This kit reduces the potential for errors associated with field-terminated hydraulic hoses and incorrect layout configurations, ensuring a smoother installation experience. Below are the key components included in the kit:

Hoses

• 3 x Hoses: 1/4" diameter, Black, 3000 PSI max pressure. These hoses are 980 mm (38.6") in length and feature 9/16-18 ORFS Female Stainless Steel connectors on one end and 9/16-24 ORFS Female Stainless Steel connectors on the other.

• 2 x Hoses: 1/4" diameter, Black, 3000 PSI max pressure. These hoses are 305 mm (14.9") in length with 9/16 ORFS Female Stainless Steel connectors on both ends.

• 1 x Hose: 3/8" diameter, Black, 2250 PSI max pressure. This hose is 378 mm (14.9") in length, fitted with 11/16 ORFS Female Brass connectors on both ends.

T Connectors

• 1 x T Connector: Brass, 11/16 ORFS Male <9/16 ORFS Male> 11/16 ORFS Male. This connector serves as a critical junction in the hydraulic system, ensuring secure and leak-free connections between the hoses.

• 2 x T Connectors: Stainless Steel, 9/16 ORFS Male <9/16 ORFS Male> 9/16 ORFS Male. These connectors provide additional branching points within the system, maintaining robust connections that withstand high-pressure conditions.

This comprehensive kit ensures that all necessary components are included, promoting a precise and hassle-free installation. The high-quality materials used, such as stainless steel and brass, offer durability and resistance to corrosion, making this kit ideal for marine environments. By using pre-fabricated hoses and fittings, the risk of installation errors is minimized, leading to enhanced performance and longevity of the Verado Autopilot system.
