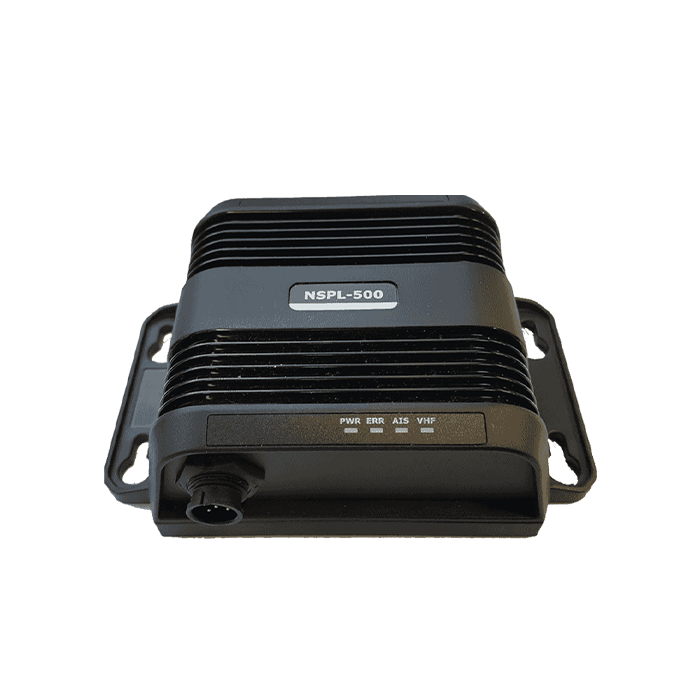

Antenna Splitter NSPL-500
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
Description
Save the hassle of installing a costly second antenna and use your existing single antenna with VHF/AIS/FM, by enlisting the lightweight, compact NSPL 500 antenna splitter. When combined with the NAIS 500 AIS system, you can see and be seen on the water, whether tackling busy shipping lanes or crowded ports.
Key Features
-
Plug and Play
-
FM connector for SonicHub™ 2 or any compatible stereo FM unit.
-
Lightweight Unit - Just 260 grams.
-
Waterproof IPX7 standard.
-
Low Power Consumption
-
Ideal for sailboats or power boats, the NSPL 500 features a low average power consumption of less than 150 mA at 12 V DC.
Wide Voltage Range
The NSPL 500 is suitable for 12 or 24 V DC systems with a wide range of supported input voltages from 9.6 V to 31.2 V DC.
High Performance with Low Loss
The NSPL 500’s high-performance design means no insertion loss on AIS and VHF receive, and low insertion loss on AIS and VHF transmit.
General Specification
| Dimensions | 152 x 98 x 52 mm |
| Weight | 260 g |
| Voltage supply | DC 9.6 to 31.2 V |
| Current consumption | <150 mA at 12 VDC |
| VHF and AIS frequency range | 156 MHz to 162 MHz |
| Insertion loss AIS & VHF receive paths 0 dB | 0 dB |
| Insertion loss AIS & VHF transmit paths | Typical 1 dB |
| Max input power, AIS port | 12.5 W |
| Max input power, VHF port | 25 W |
| Min input power, VHF port | 0.5 W |
| AIS, VHF and Antenna port impedance | 50 Ohms |
| FM port impedance | 75 Ohms |
| Operating temperature | -15ºC to +55ºC |
| Ingress protection | IP67 |
