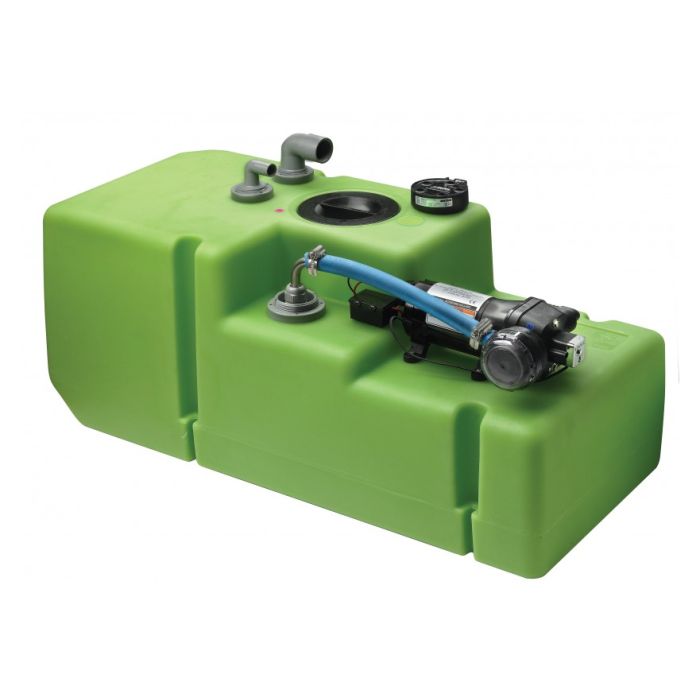

Tank fresh water system 61L 24V (includes plastic tank fitted with pump & fittings)
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
Drinking water tank, 61L, 24V
DWSC06124
This high grade synthetic tank for drinking water is supplied with an electric pump which automatically switches on when the pressure in the system drops (for example when a tap is opened).
The installation of a DWS tank saves valuable time, as only the hoses and power supply have to be connected. The premium drinking water system offers a high degree of usability.
All connections for filling Ø 38 mm, suction and ventilation Ø 16 mm are supplied installed, together with a filter in the suction line and a float sensor to connect a level gauge.
An inspection cover, for cleaning the inside of the tank is also fitted as standard.
This system has a tank capacity of 61 litres.
The 24V motor has an output of 13.2 l/min at zero head.
General Specification
| EE Part# | 04.03.0111 | |||
| OEM part# | DWSC06124 | |||
| Type DWSC | 6124 | |||
| Capacity litres*) | 61 | |||
| Weight kg *) | 10.1 | |||
| Max. pressure | 30kPa (0.3 bar, 4 psi) | |||
| Tank wall thickness | 6.35 mm ± 1.3 mm (1/4" ± 3/64") | |||
| Material: | mMPE (Metallocene Medium Density Polyethylene), colour: green | |||
| Note: The values shown are the nominal values for the capacity and weight. Slight differences are possible | ||||
| Dimensions of fittings | |
| for drinking water pipe | ø 12 mm (1/2") |
| for venting | ø 16 mm (5/8") |
| for filler hose | ø 38 mm (1 1/2") |
