Tank fresh water system 42L 24V (includes plastic tank fitted with pump & fittings)

AED 2,158.00 Excl. tax

Stock Status: Out of stock

EEPN 04.03.0109 | OEM DWSC04224

Download Document

document-text

Description

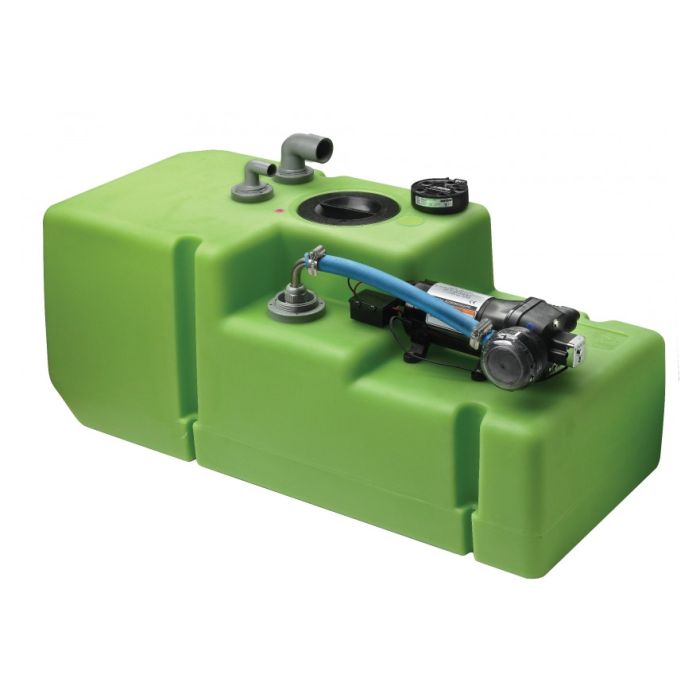

Drinking water tank, 42L, 24V
DWSC04224

This high grade synthetic tank for drinking water is supplied with an electric pump which automatically switches on when the pressure in the system drops (for example when a tap is opened).
The installation of a DWS tank saves valuable time, as only the hoses and power supply have to be connected. The premium drinking water system offers a high degree of usability.
All connections for filling Ø 38 mm, suction and ventilation Ø 16 mm are supplied installed, together with a filter in the suction line and a float sensor to connect a level gauge.
An inspection cover, for cleaning the inside of the tank is also fitted as standard.
This system has a tank capacity of 42 litres.
The 24V motor has an output of 13.2 l/min at zero head.

cog

General Specification

EE Part# 04.03.0109
OEM part# DWSC04224
Type DWSC 4224
Capacity litres*) 42
Weight kg *) 8.7
Max. pressure 30kPa (0.3 bar, 4 psi)
Tank wall thickness 6.35 mm ± 1.3 mm (1/4" ± 3/64")
Material: mMPE (Metallocene Medium Density Polyethylene), colour: green
Note: The values shown are the nominal values for the capacity and weight. Slight differences are possible



Dimensions of fittings
for drinking water pipe ø 12 mm (1/2")
for venting ø 16 mm (5/8")
for filler hose ø 38 mm (1 1/2")
