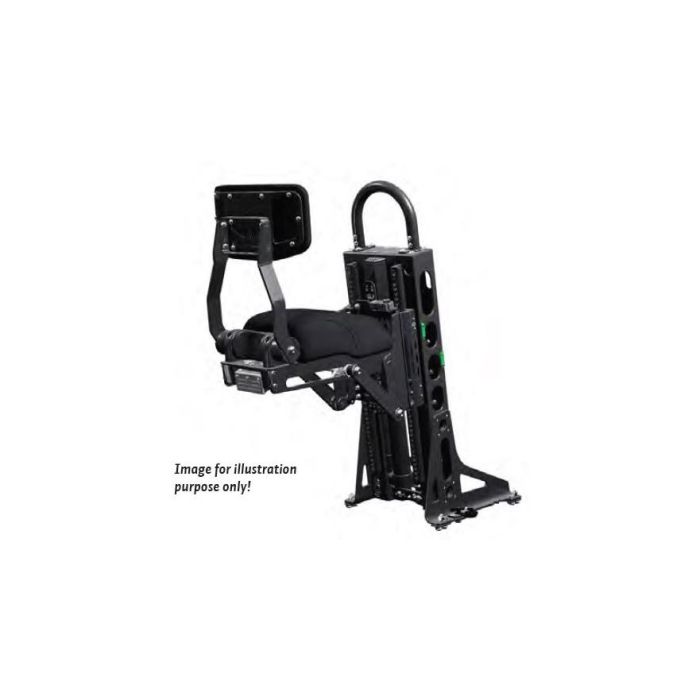

Seat SHOXS5705 Jockey 10" suspension black upholstery
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
SHOXS 5705
Tandem suspension seat with fold-down base
Categories: Military Commercial Recreational
The SHOXS 5705 is a rear-mounted jockey style seat ideal for crew and passenger seating in open boats and RHIBS.
A drop down seat base allows the 5705 to stow in seconds, and an optional SHOXS TRAXS installation allows the seat positions to be reconfigured easily, allowing more cockpit space for movement or gear. A compact design means the 5705 is purpose built for high density layouts, and maximizes the seating capacity for passengers or crew to ride comfortably.
SHOXS 5705 can be combined with front-mounted jockey seats to create an integrated shock-mitigated seat system.
General Specification
| Part number | 07.01.0094 |
| Model | SHOXS 5705 |
| Description | SHOXS 5705 Jockey seat. Seat typically offered as a rearmounted combination seat. Deck mounting and Stabilization unit (Stab) not included. Folds Down to Stow –Creates more deck space |
| Material | Aluminum |
| Suspension travel | 10" |
| Dimensions (max.) (H x W x D)mm | 936 x 335 x 485 mm |
| Weight | 19kg |
| Finish | Hard anodized |
| Tandem Mount with Other Seats | 4800, 5005 and 5605 |
| Upholstery | Black upholstery waterproof marine vinyl, UV stable and mold resistant |
| *Optional (at added cost) | Front Handhold |
| TRAXS Mount | |
| Bulkhead mount | |
| Deck Mount | |
| Drop Down Seat Base | |
| SHOXSPROAdjustable Isolator | |
| *Please contact Exalto Emirates for your requirements |
