Seat pedestal SHOXSX8 black anodized
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description

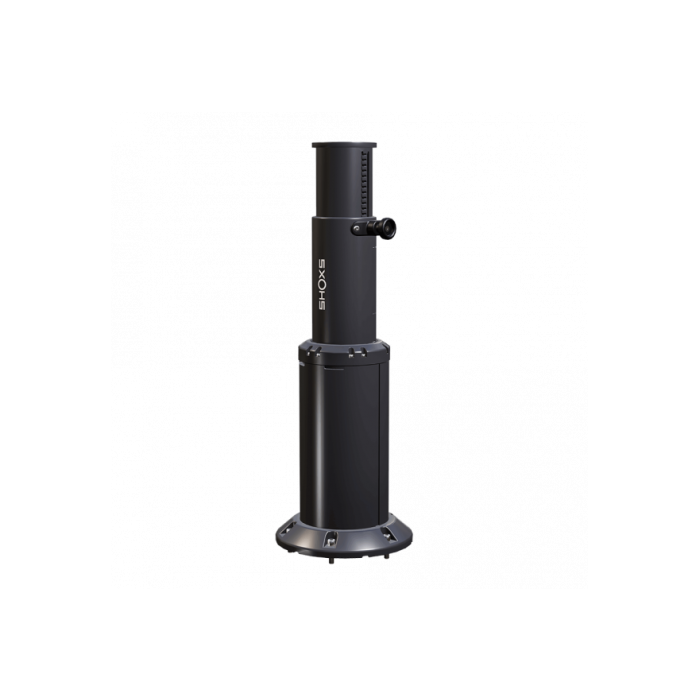

SHOXS X8 Black anodized
A shock-mitigated seat mount with 8 inches of suspension travel for maximum wave slam protection and taller ride heights. Uses SHOXS air damping technology.
The X8 Pedestal is equipped with an adjustable mounting flange for mounting in nearly any helm layout.
The X8 pedestals can be mounted directly onto the deck, in confined spaces or on deckmounted boxes.
Installation is quick and hassle-free, with multiple mounting configurations.
The pedestals use the same military technology for commercial and recreational use.
Ideal for new construction and refit.
General Specification
| Part number | 07.02.0164 (Black anodized) |
| Model | SHOXS X8 |
| Description | SHOXS X8 has 8” of suspension travel for more extreme sea states and taller ride heights. Black anodized finish. Without height adjust. |
| Material | Anodized Aluminum |
| Suspension travel | 8" |
| Dimensions Ht x Base (with height adjust) | 855mm x 254mm |
| Dimensions (with Fixed height) | 652mm x 254mm |
| Weight | Black anodized 11.8 kg |
| Optional (at added cost) | Height adjust |
