Seat 4600 10" suspension black upholstery with belt and stabilization unit
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
Description

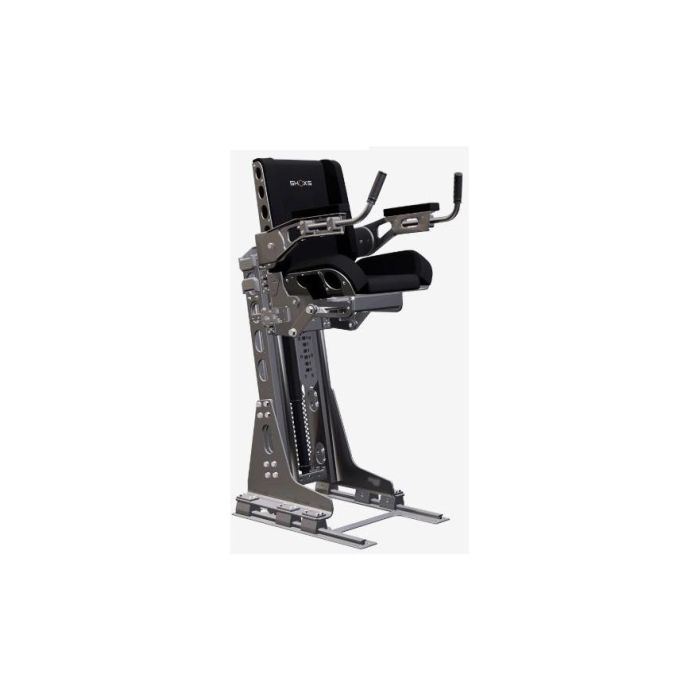

SHOXS 4600
Bucket-style suspension seat with drop-out seat pan for standing operation.
Categories: Military Commercial
A suspension seat that converts to a standing bolster for high speed interceptors and military vessels.
The 4600 is suitable for installation on open boats, RHIBs and cabin boats.
Typical applications include helmsman, navigator, crew and pax (passenger) seating.
The 10" air isolator is designed to provide shock absorbing comfort to avoid injury.
The drop out seat pan enables the occupant to choose standing or sitting operation of the boat and critical equipment.
Optional fore/aft/height adjustment allow an effective ride for occupants of any size, and the 8 inch height adjust is the maximum available in the industry.
Components include 316 stainless steel, 316 stainless steel fasteners and Titanium. The highly reinforced armrests prevent lateral ejection.
General Specification
| Part number | 07.01.0090 |
| Description | with lapbelt 4600 series seat with lapbelt 10” suspension Height adjustment, 8” fore/aft adjustment, Armrests (L&R), Hand grips (L&R), Cup holder, Clear anodized aluminum metal, Black marine grade upholstery |
| Part number | 07.01.0110 |
| Description | Point Harness 4600 series seat with 4-Point Harness, 10” suspension Height adjustment, 8” fore/aft adjustment, Tall backrest, Armrests (L&R), Hand grips (L&R), Cup holder, Clear anodized aluminum metal, Black marine grade upholstery |
| Model | SHOXS 4600 |
| Suspension travel | 10" |
| Dimensions (max.) (H x W x D)mm | Ht. adjustable from 1163 - 1366 x 574 x 708.7 mm |
| Pedestal | No |
| Weight | 49.5kg |
| Material | Aluminum |
| Finish | Grey metal |
