SCM-AL Mini Neon RGB Marine LED Light Strip – Silicone – 2 ft – 12V
Download Document
Description

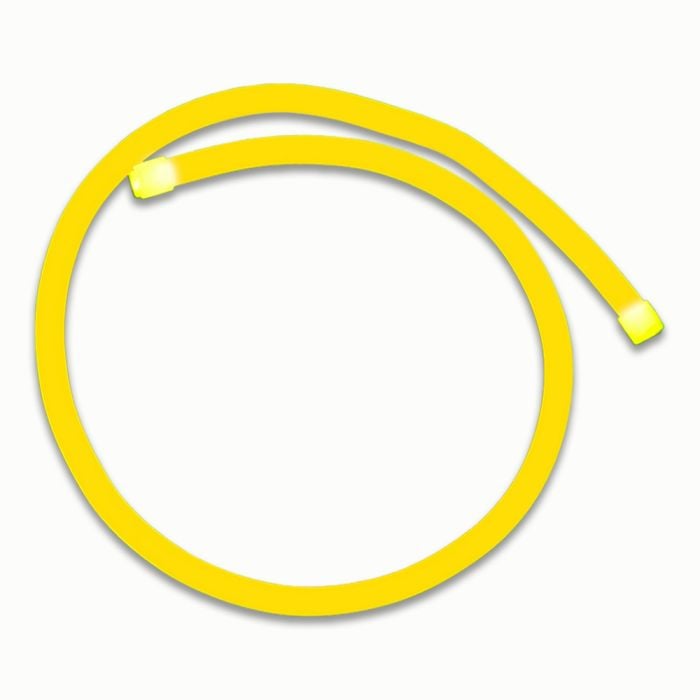

Shadow-Caster LED Lighting SCM-AL-MINI-NEON-2 RGB Marine LED Light Strip – Silicone – 2 ft – 12V
The Shadow-Caster SCM-AL-MINI-NEON is a compact RGB neon light strip designed to deliver smooth, continuous accent lighting across a vessel. Ideal for hatches, steps, coves, shelves and compartments, it is particularly suited for visible installations where a clean, diffused lighting effect is required.
Smaller than the standard neon strip, it features a tighter bend radius and higher LED density, allowing for more precise installations in confined spaces while maintaining a uniform glow.
Key Features
- Diffused RGB lighting for a seamless neon effect
- Compact design with tighter bend radius for flexible installation
- Higher LED density for smoother light output
- Ideal for visible accent lighting applications
- Flexible strip, cuttable to size
- Compatible with Shadow-Caster lighting controllers
- Silicone jacket for durability in marine environments
- IP67 rated for water resistance
General Specification
| Part Number | 09.05.0768 |
| Product Code | SCM-AL-MINI-NEON-2 |
| Colour | RGB |
| Jacket Material | Silicone |
| Length (in ft) | 2' |
| Clips (in ft) | - |
| Voltage | 12V |
| Beam Angle | 120° |
| LEDs per meter | 120 |
| Cut Segments (in mm) | 50 |
| Power | 15W/Meter |
| Lead Wire | 20' |
| Bend Radius | 1" |
| End Caps | 2 Pair |
| Dimensions (in mm) | 10 x 10 |
| Warranty | 3 years |
| Compatible Tracks | SCM-AL-MINI-TRACK-1M & SCM-AL-MINI-TRACK-HDPE-1M |
