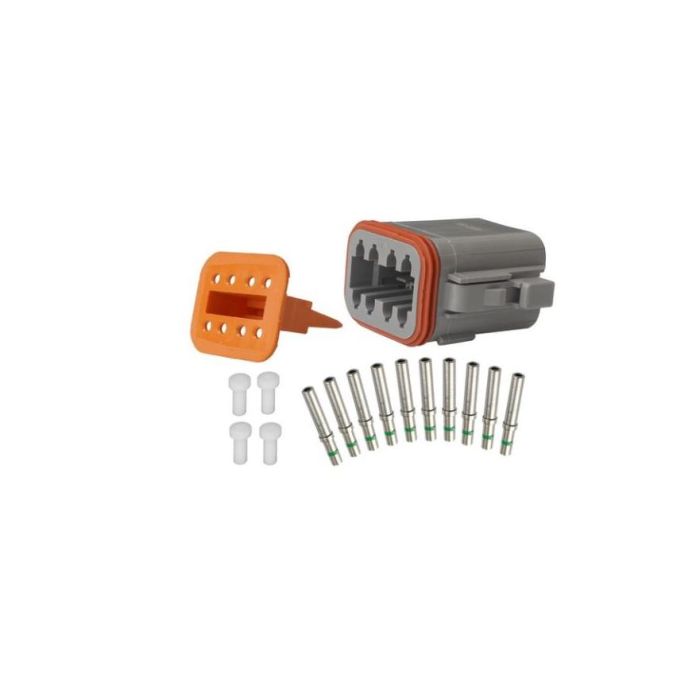

Repair pack DT 8 cavity plug includes (1) 6 way plug, (1) 8 way wedge lock, (10) socket & (4) cavity plug

DT Series Plug repair packs (14 AWG appllications) with contacts- TDT06-8RS

Kit includes: (1) 8 Pos. Plug, (1) 8 pos. Wedge lock, (10) sockets, (4) cavity plugs

Housing: Rectangular plug, Plastic reinforced with glass fiber
Contact Size: 16 (13 Amp)
Wire Size: 14AWG
Holds Pin/Socket: Sockets
Operating Temperature: -55°C to 125°C
Packs include all parts needed to assemble a connector
One to two extra terminals
Cavity plugs to seal open circuits

COMPLIANCES:
- Ingress Protection (IP) Level: IP68 and IP6K9K
- EU RoHS/ELV
- Standard UL-94 Recognized

CHARACTERISTICS:
- Wedgelocks ensure contact alignment and retention
- Redundant Silicone Seals
- Hand insertable and removable contacts

APPLICATIONS:
- Wire to wire applications
- Enclosed connectors offer field proven reliability and rugged quality
