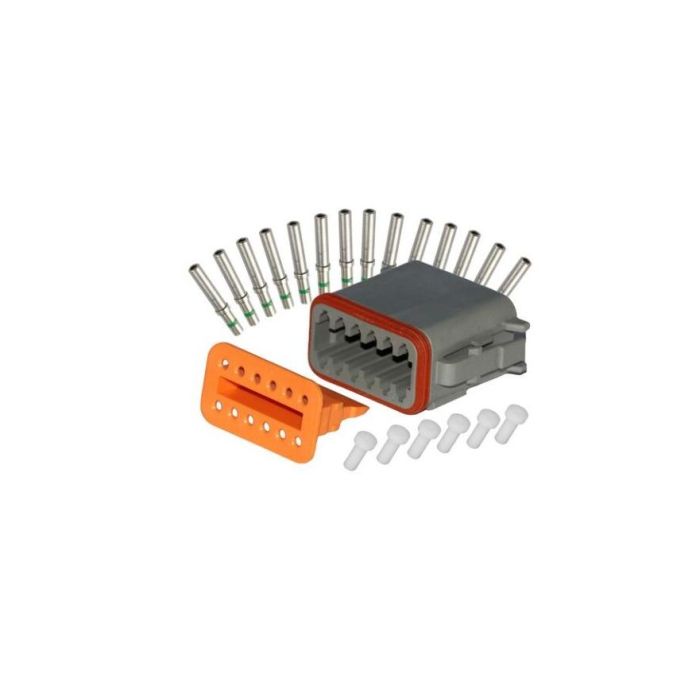

Repair pack DT 12 cavity plug includes 1 x 12 way plug, 1 x 12way wedge lock, 14x socket & 6 x cavity plug

DT Series Plug repair packs (14 AWG appllications) with contacts- TDT06-12RS

Kit includes: (1) 12 Pos. Plug, (1) 12 pos. Wedge lock, (14) sockets, (6) cavity plugs

Housing: Rectangular plug, Plastic reinforced with glass fiber
Contact Size: 16 (13 Amp)
Wire Size: 14AWG
Holds Pin/Socket: Sockets
Operating Temperature: -55°C to 125°C
Packs include all parts needed to assemble a connector
One to two extra terminals
Cavity plugs to seal open circuits

COMPLIANCES:
- Ingress Protection (IP) Level: IP68 and IP6K9K
- EU RoHS/ELV
- Standard UL-94 Recognized

CHARACTERISTICS:
- Wedgelocks ensure contact alignment and retention
- Redundant Silicone Seals
- Hand insertable and removable contacts

APPLICATIONS:
- Wire to wire applications
- Enclosed connectors offer field proven reliability and rugged quality
