Pump utility puppy 11.3 Gpm 12 V BSP 3000 series

Jabsco
AED 3,838.00 Excl. tax

Stock Status: Out of stock

EEPN 04.16.0907 | OEM 23920-2223
Pump utility puppy 11.3 Gpm 24 V NPT 3000 series
Pump utility puppy 11.3 Gpm 24 V NPT 3000 series
EEPN: 04.16.0910
AED 3,838.00
Out of Stock
Pump utility puppy 11.3 Gpm 24 V BSP 3000 series
Pump utility puppy 11.3 Gpm 24 V BSP 3000 series
EEPN: 04.16.0908
AED 1,851.00
Out of Stock
Pump utility puppy 11.3 Gpm 12 V NPT 3000 series
Pump utility puppy 11.3 Gpm 12 V NPT 3000 series
EEPN: 04.16.0909
AED 3,489.00
Out of Stock
Pump 12V DC NPT model fuse 25A
Pump 12V DC NPT model fuse 25A
EEPN: 04.16.0142
AED 2,058.00
Out of Stock

Download Document

Datasheet
document-text

Description

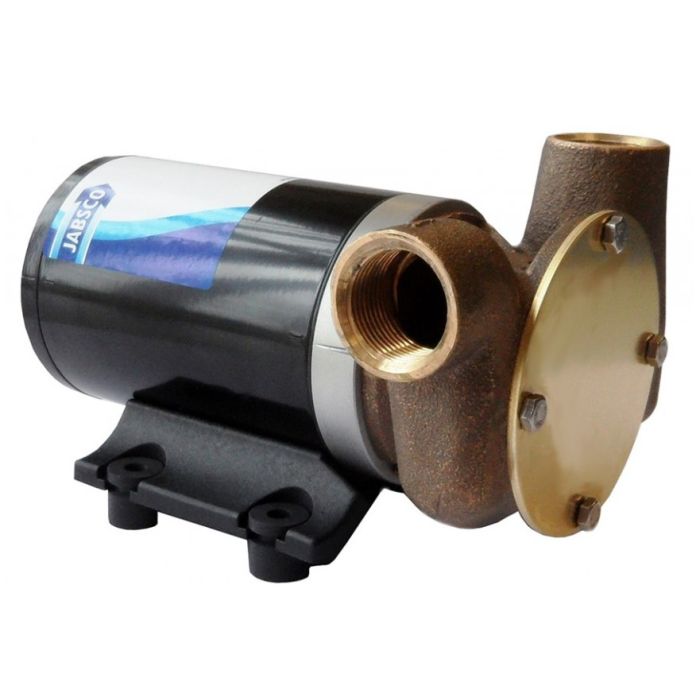

Jabsco Pump utility puppy 11.3 Gpm 12 V BSP 3000 series

cog

General Specification

23920-2223 ‘Utility Puppy 3000’ self-priming pump 12 volt d.c.

  • Connections:- ¾” BSP inlet and discharge ports.
  • Dimensions:- length 220mm, width 125mm, height 105mm
  • Fuse Size:- 25(amp)
  • Maximum Current:- 21(amps)
  • Output:- up to 50 litres/minute (11 gallons/minute). Max 12m head
  • Built-in dry-running protection for up to 10 minutes after initial prime
  • Rapid self-priming from dry up to 2.4m
  • Carbon-ceramic shaft seal
  • Non-rusting bronze body
  • Continuously rated electric motor
  • Simple, fully serviceable design with few wearing parts
  • Packaged Dimensions: L:29.00 x H:14.00 x W:16.00cm
  • Actual Weight: 4.65 Kg  (Approx. 5.15 Kg packed)
