Pump 12V DC NPT model fuse 25A

AED 2,058.00 Excl. tax

Stock Status: Out of stock

EEPN 04.16.0142 | OEM 23920-9213
document-text

Description

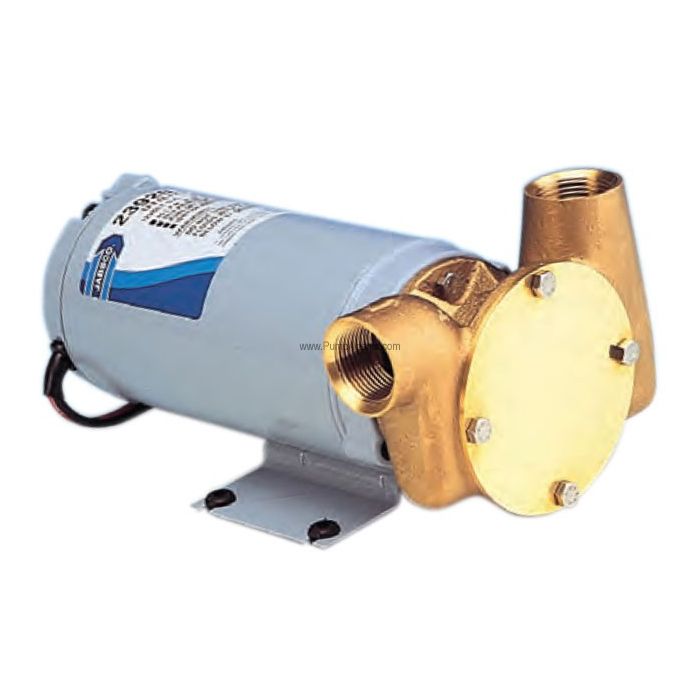

  • The Jabsco 23920-9213 is a bronze Flexible Impeller pump with a Nitrile Impeller, Mechanical seal, 3/4 Inch NPT Threaded Ports, coupled to a 12 Volt DC Motor.
  • This pump is rated for 11.33 GPM (43 LPM) output at 10 feet (3m) total head, and is self-priming up to 8 feet (2.4m) of vertical lift.
  • This pump also features a Mechanical seal for extra long life.
  • The continuous rated heavy-duty Utility Puppy 3000 offers very high flow for bilge, deck wash and general purpose use, and ten minutes dry running.
  • The pump is designed to be powered from fully charged batteries or other DC supply with adequate amperage provision.
  • Pump connections are 3/4 Inch NPT thread, with the pump being designed to operate with 1 Inch reinforced hose.
  • The dry running feature means the pump is not reversible, the discharge being the vertical port.
  • The Nitrile impeller supplied in pump is recommended for liquid temperatures of 50 degrees - 180 degrees F (10 degrees - 82.2 degrees C).
  • Do not restrict the inlet pipework as these flexible impeller pumps can handle solids so strainers are not generally recommended.
  • Hard and soft Solids handling should present little or no problem for the pump with solids size below approximately 6-7mm.
cog

General Specification

No specifications available.
