Panel RCD 2x32A
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description

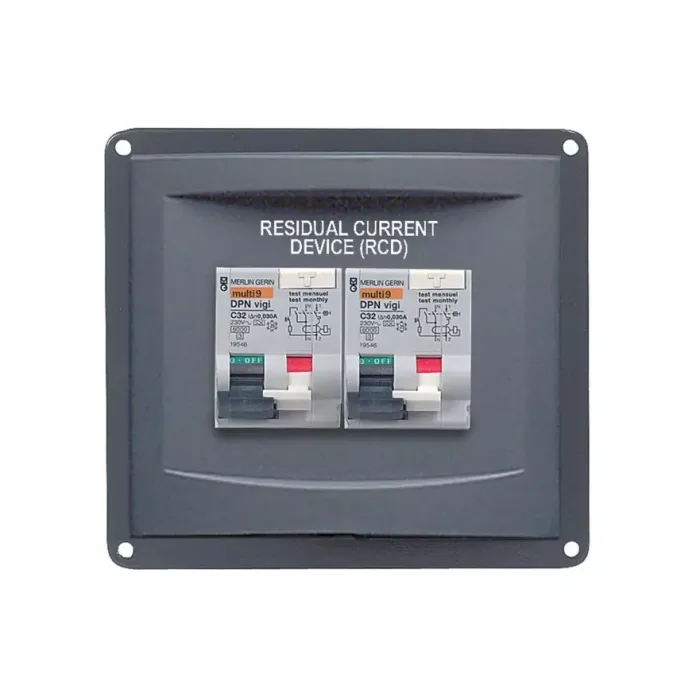

900-RCD-2X32A Residual Current Devices (RCD) panel
32A x 2
These also act as a circuit breaker (RCBO type), have an insulation rating of 400V AC, make/brake current of 6000A, a 30mA trip rating against electric shocks, and 300mA trip protection against fire risks.
Due to the different mounting dimensions of the RCD’s, these panels are made to be mounted separately from the main AC panel
115 x 127 mm
General Specification
| Part number | Model | Rating (A) | H x W x 65 mm |
| 08.11.0209 | 900-RCD-16A | 16 | 115 x 127 |
| 08.11.0210 | 900-RCD-1X32 | 32 | 115 x 127 |
| 08.11.0211 | 900-RCD-2X16A | 16 x 2 | 115 x 127 |
| 08.11.0212 | 900-RCD-2X32A | 32 x 2 | 115 x 127 |
| 08.11.0213 | 900-RCD-1x16 + 1x32A | 16 x 1, + 32 x 1 | 115 x 127 |
Cutout size - 3⁄8” (10 mm) inside all external edges
