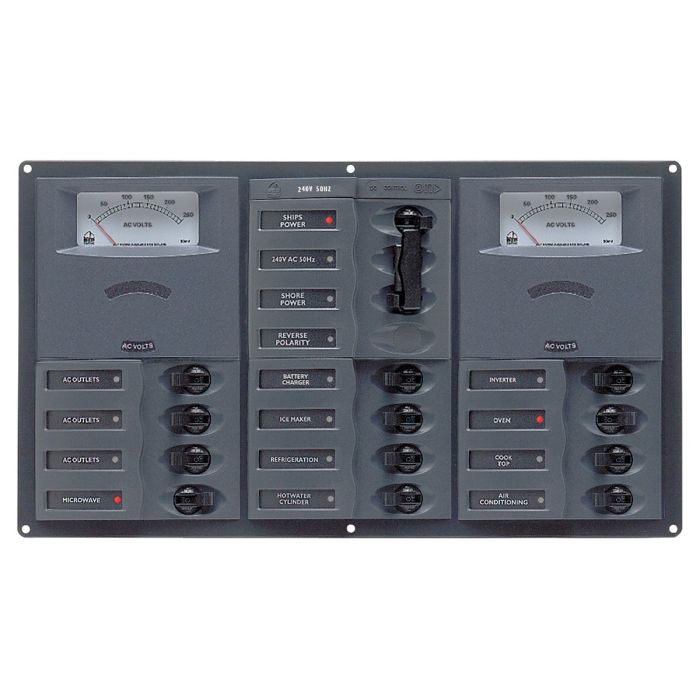

Panel 900-AC3-AM 230V 2 input+ 12 load horizontal mount with analog meter
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
AC Main Circuit Breaker Panels—Analog
900-AC3-AM
• All supplied with tranducers
• Reverse polarity indicator
• Double pole mains input CBs with side lockout
• Digital meter shows volts, amps and frequency
• LED wired to indicate live panel with mains breaker either on or off
• AC source selector ensures no cross over between AC inputs (ship or shore power)
• AC voltage/frequency label to comply with ABYC Standards
General Specification
| EE part number | 08.11.0303 |
| Part # | 900-AC3-AM |
| Nominal Voltage | 230V AC |
| Meter | Analog |
| Total Positions | 12 Loads + 2 Inputs |
| Circuit Breakers (single + double pole) | 1x 5A, 4x 10A, 5x15A, 1x 20A, 1x 25A+ 1x 20A, 1x 30A |
| Maximum Amperage | 30A |
| HxWx2.5" | 7.9" x 13.9" |
| HxWx65 mm | 200 x 351 mm |
| Neg Bus | 2x12 way |
| Label Sheet | 5 |
