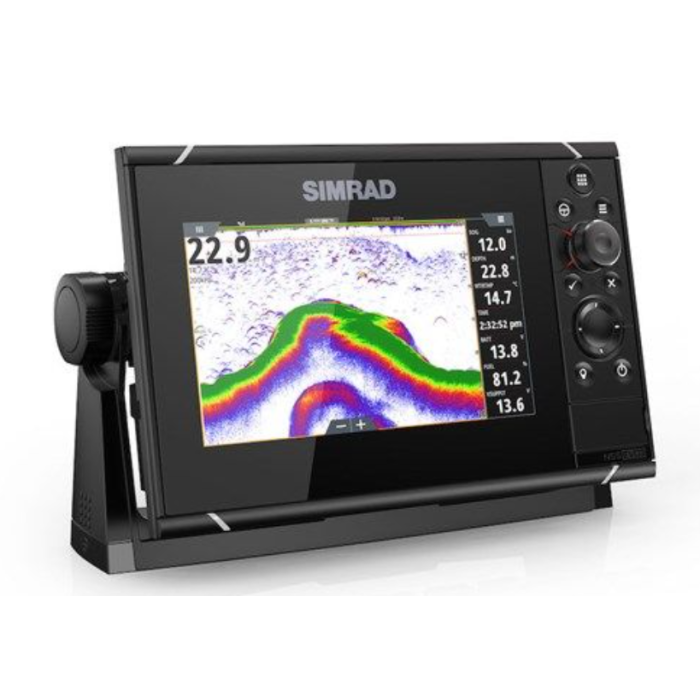

NSS7 EVO3S with world basemap - 7" Display
Stock Status: Out of stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
Description
The NSS7 evo3 complements the larger screen sizes of the NSS evo3S range with a 7-inch touchscreen, perfect for compact center consoles and other powerboats with limited dash space. You’ll enjoy the same built-in GPS, echosounder, and wireless functionality found across the NSS evo3 series, along with the ability to expand your system with radar, StructureScan® 3D imaging, and much more.
Navigate, find fish, and take total control of your on-water experience with NSS evo3. SolarMAX™ IPS displays offer exceptional clarity and ultra-wide viewing angles, even in direct sunlight, while an intuitive all-weather touchscreen and a keypad with rotary dial offer total control in any conditions. Built-in echosounder support lets you cruise confidently with ForwardScan sonar, or reveal the ultimate fishing spots with Active Imaging 3-in-1 with CHIRP, SideScan and DownScan Imaging™. Register your chartplotter, get faster technical support, download software updates and connect NSS evo3 to your smartphone or tablet with integrated wireless connectivity.
Key Features
-
SolarMAX™ IPS display with ultra-wide viewing angles
-
Switch seamlessly between touchscreen and keypad controls
-
Built-in GPS receiver, sonar support, and wireless connectivity
-
Control Simrad sonar, radar, autopilot, and other accessories
-
Industry-standard connectivity to engines, sound systems, and more
-
Easy trip planning and support for automatic routing
-
Choose low-profile flush mounting or convenient bracket mounting
General Specification
| Specifications | |
|
Display |
|
|
Backlight Color |
White |
|
Display Resolution |
600 x 1024 |
|
Viewing Angles |
80° top/bottom, 80° left/right |
|
Physical |
|
|
Dimensions W x H x D |
239 x 150 x 90 mm (9.4 x 5.9 x 3.5")With bracket: 263 x 161 x 93 (10.35 x 6.31 x 3.66) |
|
Mounting Type |
Bracket (Supplied) or panel mount |
|
Weight |
1.1 kg (2.42 lbs.) |
|
Electrical |
|
|
Power Consumption max |
20 W |
|
Recommended Fuse Rating |
3A |
|
Supply Voltage |
10 - 31.2 V DC |
|
Environment |
|
|
Operating Temperature Range |
-15°C to +55°C (5° F to 131° F) |
|
Storage Temperature Range |
-20°C to +60°C (4°F to 140°F) |
|
Waterproofrating |
IPX6 and 7 |
|
Connectivity |
|
|
Bluetooth |
Internal |
|
Ethernet Ports |
1 x 5 pin yellow connector x 1 Mbit |
|
Connectivity Wi Fi |
Internal |
|
NMEA 2000 Connectivity |
1 x NMEA 2000 Micro-C port, 1 LEN |
|
PC Connectivity |
No |
|
SD Card Storage |
2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS |
|
Video |
2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). |
|
MFD |
|
|
AIS |
Receive AIS data over NMEA 2000 or *NMEA 0183 (*NMEA 0183 has to be wired to all NSS processors) |
|
Autopilot |
Full auto pilot control and commissioning |
|
Cartography included |
World basemap (no detailed charts) |
|
Digital Switching |
BEP C-Zone, Naviop |
|
GPS |
Internal |
|
Internal Storage |
16 GB |
|
Multimedia |
via SonicHub2, FusionLink, *Sirius, **JL Audio. *USA only, **AUST. & NZ only) |
|
Sonar Compatibility |
Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan. Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders |
|
Waypoints, Routes, Tracks |
6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points. |
|
Weather |
SiriusXM via WM-3 (USA only), GRIB |
|
GPS |
|
|
Correction |
WASS, MSAS, EGNOS, GLONASS |
|
GPS Receiver Channels |
34 Channels |
|
Position Accuracy |
Horizontal Accuracy 3 m (9.8 ft) |
|
Time to First Fix |
Cold start 50 sec, Satellite Reacquisition 5 sec |
|
Update rate |
10 Hz |
