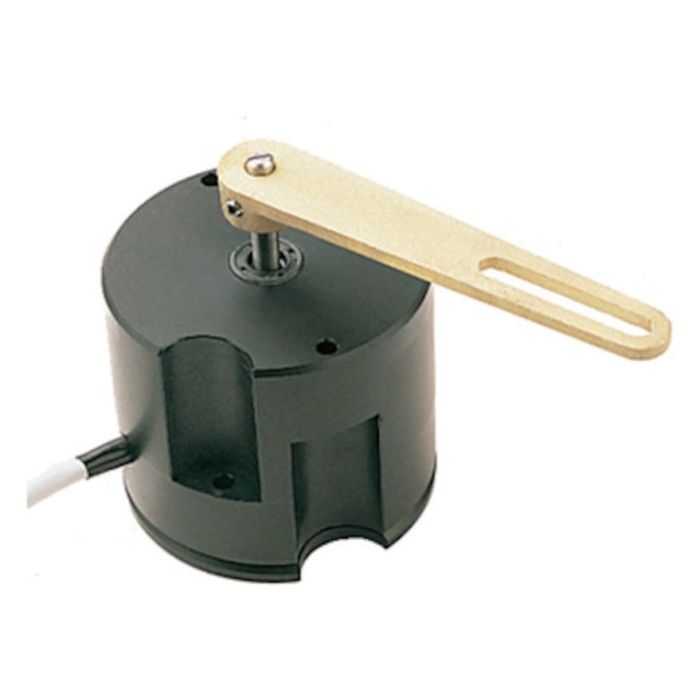

Rudder Feedback Unit RF45X
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
Description
The RF45X is a medium duty rudder feedback unit with variable frequency output for use with Simrad autopilot systems, or variable current output for use in a standalone rudder angle indicator system. The unit is mounted close to the rudder stock and is mechanically connected to the rudder by a transmission link in a 1:1 ratio.
Features:
• 3400Hz output, ±20Hz/degree
• 0 to 1.1mA Current output
• Rugged shock-resistant design
• ±45 degrees
General Specification
| Weight | 1kg |
| Material | Polyacetal (POM) |
| Protection | IP56 |
| Temperature range | -25°C to +55°C |
| Mounting | Any direction |
| Supply | 12-24V DC -10% +30%, system supplied |
| Output | Polarity independent frequency signal, and current |
| Output frequency | 3400Hz, 20Hz/Degree of change. |
| Output Current | 0.1-1.1mA |
| Indicator capacity | 5 in series (only for stand-alone system) |
| Cable | 2m |
| Rudder angle range | ±45° |
| Transmission link | Stainless 600mm with 2 ball joints |
