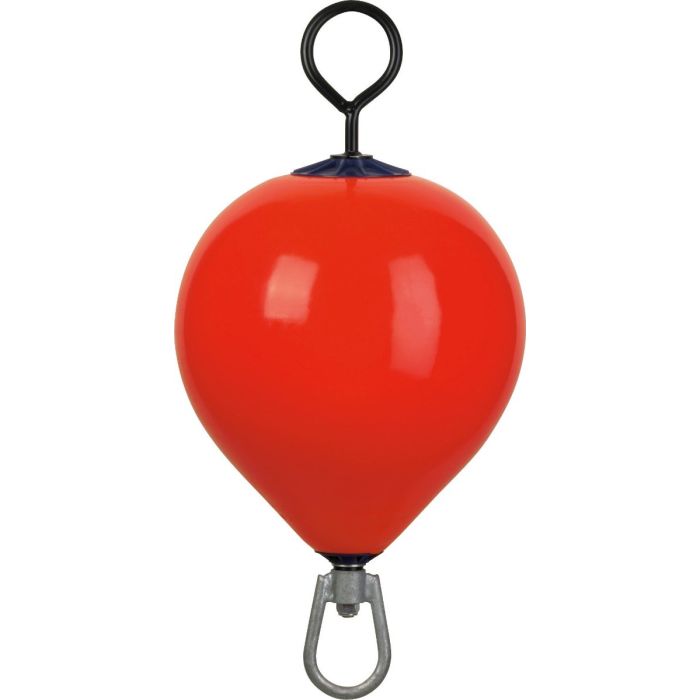

Mooring Buoy M100SH Inflatable Short Rod 810mm 260kg Buoyancy Red
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
Competitive prices compared to quality have made this product popular worlwide. Remember to use the lower eye when you moor your boat to a mooring buoy. Thus the boat will always keep in contact with the anchor. The upper eye is only intended for lifting of buoy and double safeguarding. Do not use stainless steel together with galvanized iron, as it will start galvanic corrosion, causing very quick breakdown / rusting through of the lower eye and the chain. Important!
Standard colour: Red & white.
Optional colours: Black, blue & yellow.
General Specification
| Short rod | |||||||
| Part number (White) | Part number (Red) | Type | Ø (mm) |
L (mm) |
Buoyancy (kg) | Rod Ø (mm) | Circumference (mm) |
| 14.02.0022 | 14.02.0066 | M30SH | 240 | 290 | 7 | 12 | 760 |
| 14.02.0023 | 14.02.0067 | M40SH | 320 | 380 | 17 | 12 | 1015 |
| 14.02.0024 | 14.02.0068 | M50SH | 405 | 460 | 34 | 16 | 1270 |
| 14.02.0025 | 14.02.0069 | M60SH | 480 | 500 | 61 | 16 | 1525 |
| 14.02.0026 | 14.02.0070 | M75SH | 605 | 650 | 120 | 16 | 1905 |
| 14.02.0027 | 14.02.0071 | M100SH | 810 | 850 | 260 | 20 | 2540 |
| Long rod | |||||||
| Part number | Part number | Type | Ø | L | Buoyancy | Rod Ø | Circumference |
| (White) | (Red) | (mm) | (mm) | (kg) | (mm) | (mm) | |
| 14.02.0051 | 14.02.0072 | M30L | 240 | 290 | 7 | 12 | 760 |
| 14.02.0052 | 14.02.0073 | M40L | 320 | 380 | 17 | 12 | 1015 |
| 14.02.0053 | 14.02.0074 | M50L | 405 | 460 | 34 | 16 | 1270 |
| 14.02.0054 | 14.02.0075 | M60L | 480 | 500 | 61 | 16 | 1525 |
| 14.02.0055 | 14.02.0076 | M75L | 605 | 650 | 120 | 16 | 1905 |
| 14.02.0056 | 14.02.0077 | M100L | 810 | 850 | 260 | 20 | 2540 |
