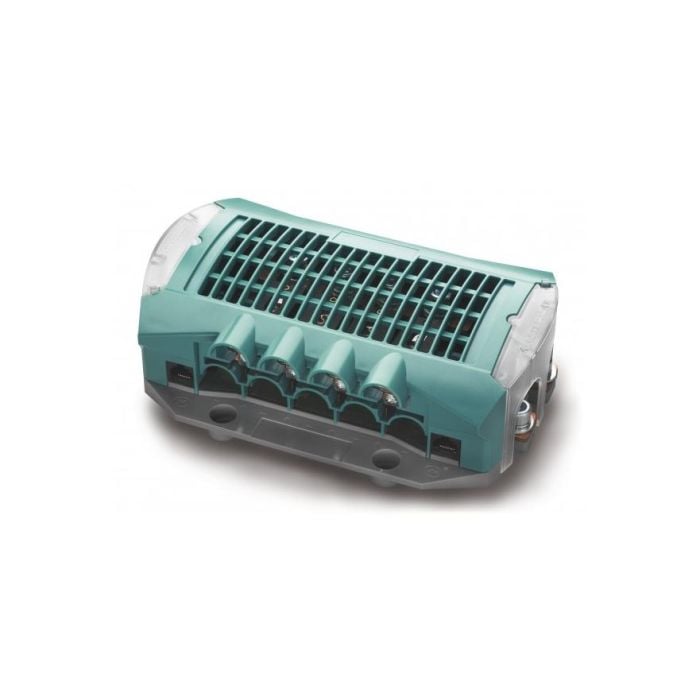

Mastervolt DC distribution 500 (DC500)
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Description
The dc Distribution 500 is the smallest distribution model available. It connects up to four dc devices to the dc groups, such as a battery charger, inverter, alternators and solar panels. With the included plug & play cable it can be easily connected to the MasterBus network. The MasterView panel gives all fuses logical names, for instance, referring to the connected equipment, to ensure you receive understandable error notifications (for example: battery charger fuse defect).
General Specification
| Dimensions, H x W x D | 5.9” x 7.9” x 2.5” / 150 x 216 x 65 mm |
| Weight | 2.6 lb. / 1.2 kg |
| Battery voltage | 12, 24 or 48V dc |
| Current | 300A continuous / 500A for 5 minu |
| MasterBus powering | yes |
| Standard fuses | 80, 80, 125, 160A - ANL type |
| Spare fuse | (deviating values can be ordered separately) 125A ANL type |
| Alarm | fuse monitoring |
| Protection degree | IP21 |
| Delivered with | 5 fuses, hex tool, MasterBus terminator, MasterBus cable, cable protections for dc connections |
