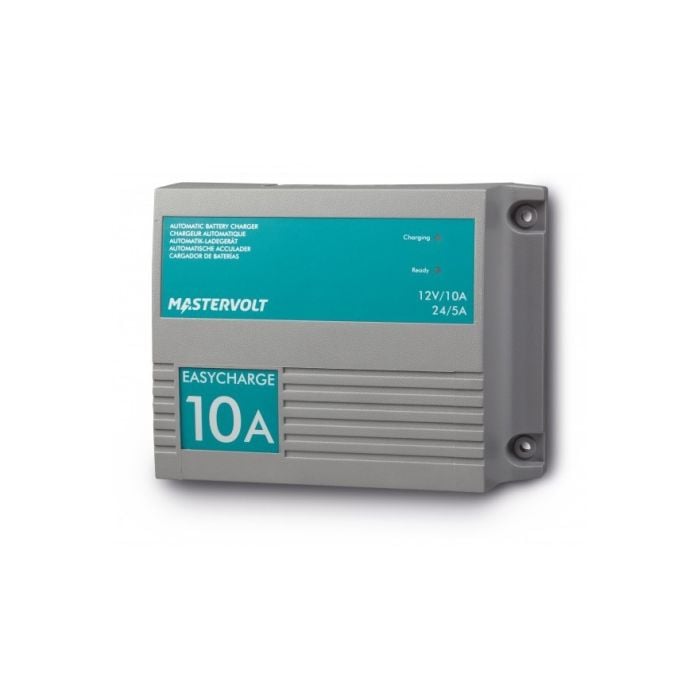

Charger EasyCharge 10A 12V / 5A 24V

AED 775.00 Excl. tax

Stock Status: In stock

EEPN 08.01.0031 | OEM 43321000
document-text

Description

The fixed-mount, waterproof units are fully sealed in an epoxy-filled, non-corrosive enclosure, and built to IP68 waterproofing standards, easily meeting global regulations like CE, CSA, CEC and ABYC. The outputs are completely isolated, and can be used in either series or parallel for higher voltage or current, including 12 or 24 V outputs. Highly efficient and simple to use, these chargers are designed for harsh environments and are fully salt, shock and vibration tested. Currently, 6 A single bank and 10 A dual bank types models are available.

A key feature is the ‘sense and send’ technology, which allows the chargers to detect which batteries need the most charge and prioritise accordingly. The battery chargers have the ability to charge wet, AGM and gel batteries, with a universal input (120-230 V) for total worldwide freedom.

cog

General Specification

Part number 08.01.0030 08.01.0031
Model EasyCharge 6A EasyCharge 10A
Total charge current 6 A at 12 V 10 A at 12 V / 5 A at 24 V
Recommended battery capacity: charge
(based on 50% discharged battery)
upto 120 Ah upto 120 Ah
Nominal input voltage 120/230 V (90-265 V), 50/60 Hz 120/230 V (90-265 V), 50/60 Hz
AC connection 1.2 m (4 ft) cable + Euro plug 1.2 m (4 ft) cable + Euro plug
DC connection ring terminals ring terminals
Dimensions, H x W x D 76 x 152 x 51 mm 127 x 178 x 51 mm
Weight 1.8 kg 2.8 kg
