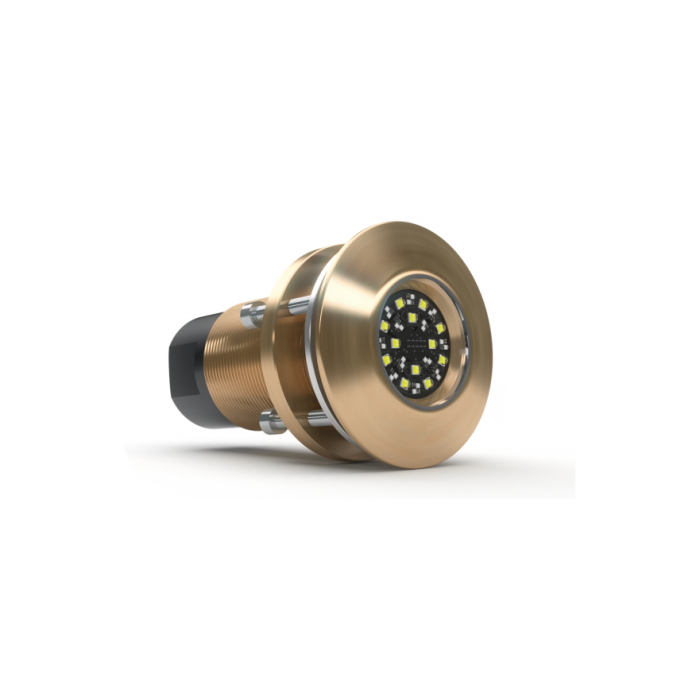

Underwater Light LED TIX403 Supra Thru-Hull 12/24V 16,650lm Blue/White 110° Marine Bronze IP68
Download Document
Description
Thru-hull interchangeable (TIX) series light.
TIX403 Light - 15,300 Lumens / 7,400 Fixture Lumens, 110° beam, Internal Driver, 12/24 Volt
Flush-fit suitable for transom, side and bottom hull mounting.
Dual Color White/Blue
Transom, side hull or bottom mounting
Requires 09.03.0258 (60-0329) SUPRA i-Connect Installation Kit (Hub & Switch), each Hub connects up to four lights, up to 16 hubs and 64 lights per system
SUPRA Thru-Hull lights can also be controlled via Lumi-Link with compatible touch screen MFDs.
‘2-lights-in-1’ (blue & white) in a single high-powered fixture without sacrificing brightness; both colours run at full power. Easily switch between colours, fade colours, adjust brightness, and strobe in two speeds. All Lumishore Thru-Hulls are ‘flush-it’ with extremely low profiles, suitable for transom, side and bottom mounting. TIX models are interchangeable with an internal driver; servicing and future upgrades can be done without hauling. Controlled by theSUPRAi-Connect Hub & Switch, or directly from your compatible MFD when you add the SUPRA Lumi-Link Bridge Module.
What it comes with?
Single Light Includes:
- One (1) SUPRA TIX403 Dual Colour (White & Blue) Light with Built-in Driver
General Specification
|
Available colours |
Dual Colour (Blue & White) |
|
Lumens |
15,300 |
|
Fixture lumens (white) |
7400 |
|
Number & type of LED |
White - 12 x 10W, Blue - 24 x 3W |
|
LED power - HICOB array |
Yes |
|
Typical led life |
50,000+ Hours |
|
User control options |
SUPRA i-Connect Hub & Switch Note: * Requires SUPRA Lumi-Link Bridge Module |
