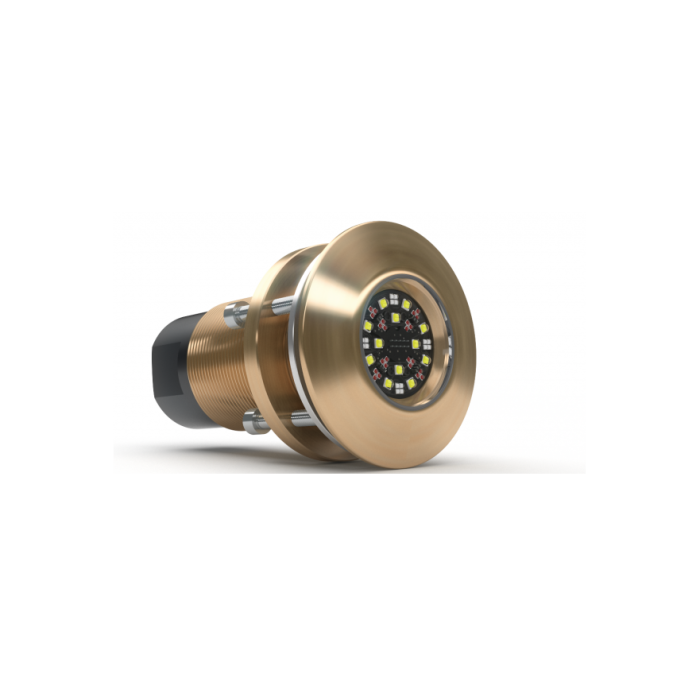

Underwater Light LED TIX403 EOS Thru-Hull 12/24V 15,570lm RGBW 110° Marine Bronze IP68
Stock Status: In stock
Note: Only quantities are available in stock. Currently out of stock. Please request a quote.
Download Document
Description
Thru-hull interchangeable TIX403-EOS light.
TIX403-CCP (Single Light)
15500 Lumens / 7,000 Fixture Lumens,
110° Beam,
12/24 Volt
Serviceable from inside hull, designed for transom, side and bottom hull mounting.
Full Color Change, Infinite Colors
Single Light Set Includes:
One (1) EOS TIX403 Light with Built-in Driver
Control using the Lumi-Link Command Center and your choice of STV 2204i Lumi-Link Display and/or compatible MFD.
TIX403 EOS requries 09.03.0245 (60-0321) EOS i-Connect Hub.
Each hub connects up to four lights, and mulitple hubs may be linked.
General Specification
|
Available colours |
Full Colour Change (RGBW) |
|
Lumens |
15500 |
|
Fixture lumens (white) |
7,000 |
|
Number & type of LED |
White–12×10W / Green–12×3W / Blue–12×3W /Red–16×3W |
|
LED power - HICOB array |
Yes |
|
Typical led life |
50,000+ Hours |
|
User control options |
Certified MFD Screen |
|
Suggested vessel length |
7.5m to 25m |
