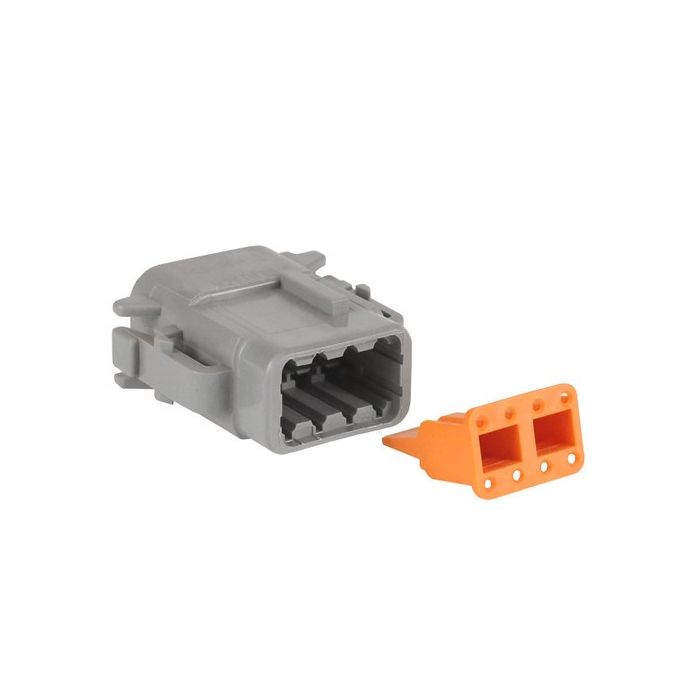

Kit plug for DTM 8 cavity Deutsch connector for 20-24 AWG wire (single pc)

Kit plug for DTM 8 cavity Deutsch connector for 20-24 AWG wire (single pc)
AED 14.30 Excl. tax
35% OFF |
AED 22.00

Stock Status: In stock

EEPN 08.15.0665 | OEM TDTM06-8S-1
document-text

Description

Description

DTM Connector, Plug, 8 Cavity

Kit plug for DTM 8 cavity Deutsch connector for 20-24 AWG wire includes housing & wedgelock only (single pc). DTM Series connectors are designed for smaller wire gauge applications. The DTM series offers electrical designers the ability to use multiple size 20 contacts (20-24 AWG) each with 7.5 Amp continuous capacity, within a single shell.
Note : Kits contains housing only. Wedgelock, pins and sockets sold separately.

APPLICATIONS: Deutsch environmentally sealed connectors are designed for cable to cable applications, where signal-level or power circuits must withstand harsh conditions

COMPLIANCES:
- UL recognized
- RoHS
- IP 6K9K (DT, DTM)
- J1939/11, J1939/13 and J1939/15

CHARACTERISTICS:
- Operating Temperature -55°C to 125°C
- Durability: No defects after 100 cycles of engagment/disengagement

To make a complete female connection you will need: Receptacle + Wedgelock + Pin + Boot + Cavity plug.
To make a complete male connection you will need: Plug + Wedgelock + Socket + Boot + Cavity plug.
